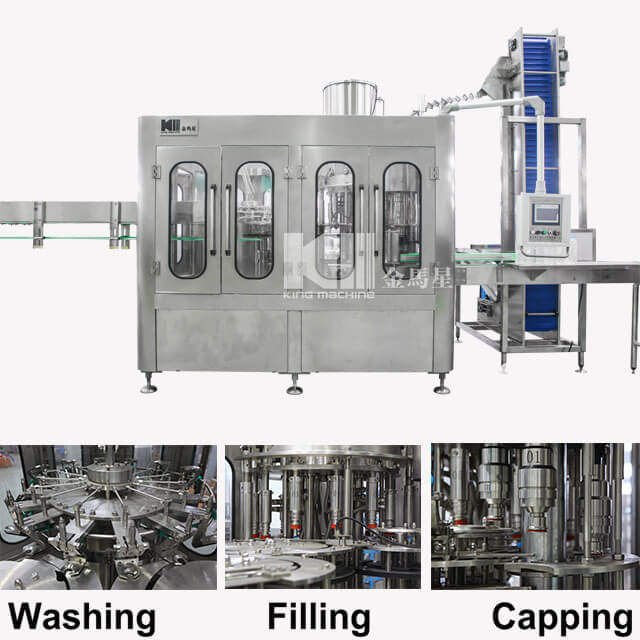

Juice/Tea Hot Filling Machine 3000BPH RCGF 14-12-4
RCGF series 3-in-1 set of machine is mainly used in the beverage filling process.
- Product Category
- Water filling machine
- Juice drink filling machine
- Soft drink filling machine
- Easy open can filling machine
- 3&5 gallon filling machine
- Oil filling machine
- Wine filling Machine
- Beer filling machine
- Blowing filling capping combiblock machine
- Water treatment system
- Bottle blowing machine
- Bottle labeling machine
- Bottle packing machine
Product Description
Automatic orange juice filling machine 8000BPH RCGF 24-24-8 technical introduction and working principle:
1). 1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\’s Mitsubishi, France Schneider, Siemens.
1). 1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\’s Mitsubishi, France Schneider, Siemens.
| Containers and specifications | ||||
| Project Name: Full Automatic Complete Juice 2000-20000bph Production Line | Hot Filling Fruit Juice | |||
| Material | Shape | Filling volume | Filling level（mm） | Neck type |
| PET Bottle | Square or Round Bottle | 100-2000ml | Distance from bottle neck According request | As request |
| Adjustable specifications of the bottle type | 【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added. | ||||
| Juice Preparation | Fruit , Concentrate, Powder mixing ..... | |||
| Container Label & Control Mode | Packaging system | Palletizing system | ||
| Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic | Packing system | Min, Spec. | Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer | |
| Manual Film shrinker Wrap Around packer Robert Packing Machine | 1*2 2*3 3*4 4*6 3*5 | |||
| User Ambient Conditions | Temperature：10～40℃；Humidity：No dew | |||
| User Electrical Supply Specification | Voltage：380V±5%， 3phase； Frequency：50HZ±1% | |||
| Model | Washing heads | Filling heads | Capping heads | Capacity 500ml(bph) | Bottle size (L) |
| RCGF14-12-4 | 14 | 12 | 4 | 1500 bph | 0.25-2L |
| CGF16-16-5 | 16 | 16 | 5 | 3000 bph | 0.25-2L |
| CGF18-18-6 CGF24-24-8 | 18 24 | 18 24 | 6 8 | 4000-5000 bph 8000-9000 bph | 0.25-2L 0.25-2L |
| CGF32-32-10 | 32 | 32 | 10 | 10000-12000bph | 0.25-2L |
| CGF-40-40-12 | 40 | 40 | 12 | 14000-15000 bph | 0.25-2L |
| You can also customize the juice filling machine size you needed | |||||
Product Display

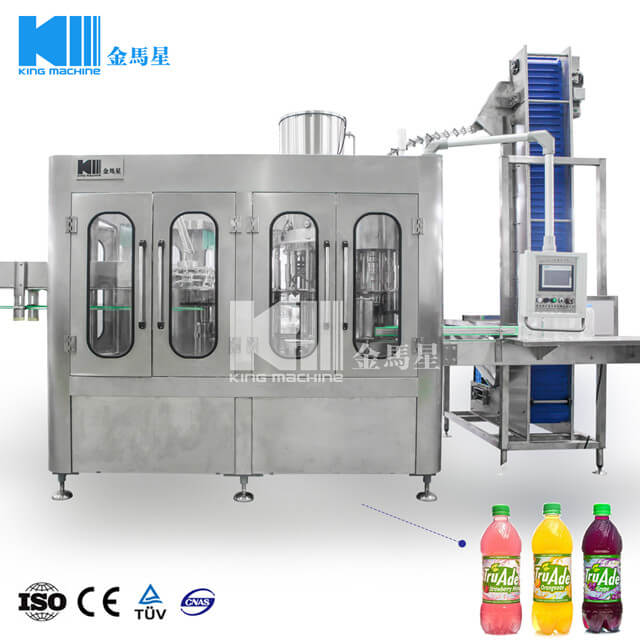

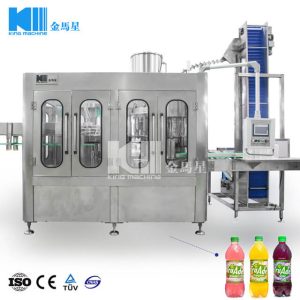

Automatic orange juice filling machine
Juice Filling Machine suitable for filling different kinds juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling speed will not be affected.
Packaging
FAQ
Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines, shipping together.During the warranty time, we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid? A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
A:We will send one year enough easy broken spare parts together with the machines, shipping together.During the warranty time, we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid? A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
