Beer Carbonated Soft Drink Beverage Can Filling And Sealing Machine

Product Description

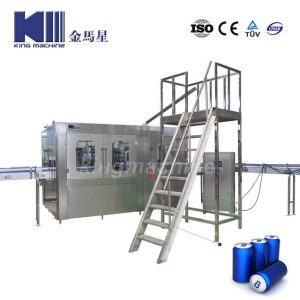

Aluminum Can Carbonated Soft Drink Beverage Filling and sealing machine

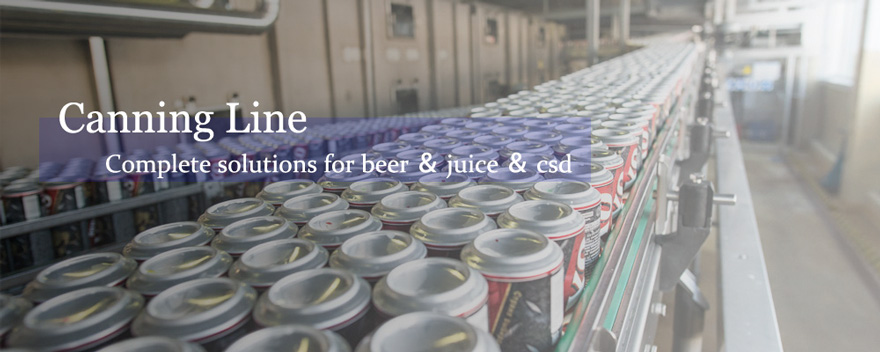

* we provide the complete pop cans / tin can filling and package solution ,from juice processing system , water treatment plant , can depalletizer ,can rinsing machine ,can filling & sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,juice , CSD industry and so on.

Technical parameter :beverage drink can filler machinery
Model	GDF12-1	GDF18-4	GDF24-4	GDF32-6	GDF40-8
Capacity(cans/hour)	2000	8000	12000	15000	20000
Suitable container	Aluminum Can / Tin Can / Plastic Can
Can diameter	Dia50 ~ dia99mm
Can height (mm)	70-133mm
Compressor air	Isobaric filling / normal pressure filling
Application	Beverage Can Filling Machine
Total power (kw)	2.4kw	4.4kw	5.2kw	6.2kw	7.2kw
Overall dimensions	2.5*1.9m	2.8*1.9m	3.2*2.15m	3.5*2.5m	3.8*2.8m
Height	2.3m	2.5m	2.5m	2.5m	2.5m
Weight(kg)	2500kg	3200kg	4000kg	4500kg	6500kg

Cola, , Soda, speaking water, cocktail, flavored water…the variety of carbonated beverage is ever changing. New trend, new products and new packaging are emerging continuously. For carbonated filling machines, how to rise up the filling temperature to reduce energy consumption? How to reduce foaming? How to keep accurate filling?How to avoid the residuals in the neck? How to preserve the CO2…it is not an easy task to handle all these challenges. However, no matter what products, King Machine will achieve your target with the best technology. Meanwhile, King Machine filling machine can realize multiple functions in one equipment. One machine can do water, carbonated drinks and hot filling products.

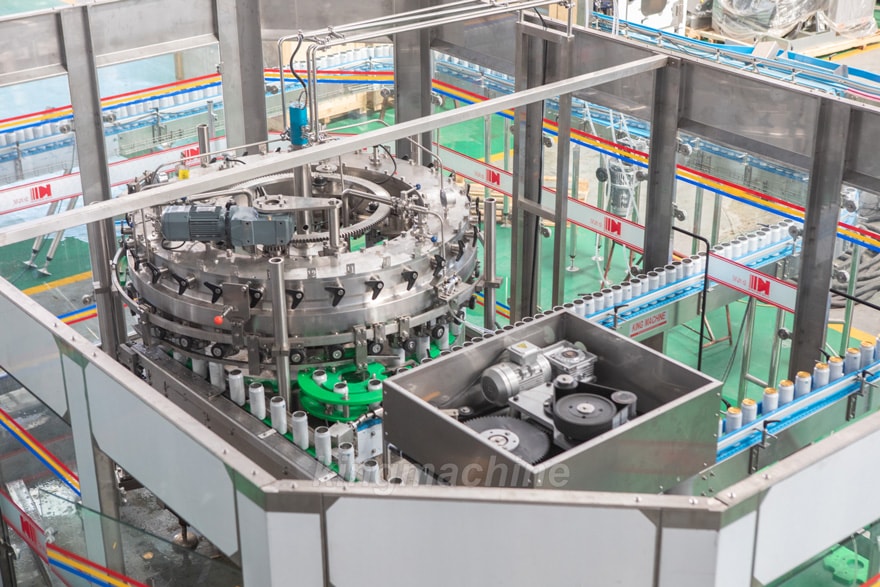

The equipments constitute

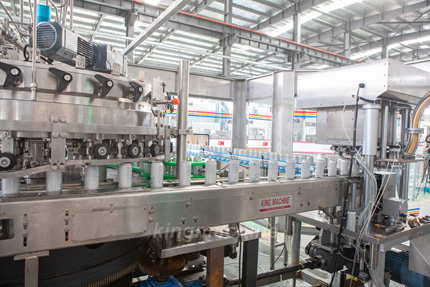

Mainly the filling machine is from the filing urn and the filling valve. After can is washed, it is transferred to the filling machine through the middle spider. The star wheel will stuck can and sent them into the filling machine. The base will support the can to rotate around the filling machine, and the roll will open, the liquid will into can.

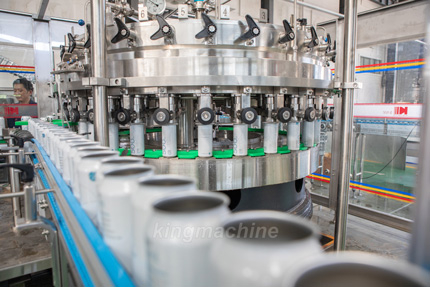

The filling valve
The filling valve is one of the key parts that the filling machine, the filling valve is make up of the valve core, valve body ,valve seat , umbrella?wide liquid valve—etc—
1. When can from in the center the star round enters a can-base of board, the filling valve taking the valve coat, the valve core is together up move, at this time 0 type roll 1 take off with the valve seat to open, enter the filling district.
2.The material continue downflow, until the bottle filling up ,when the rolls round to carry on the cam, the filling valve to move up,0 type circle 1compress tightly the valve body, make the material no longer enter the valve tube of the valve core.

Cap screwing Machine
The cap screwing machine is composed of frame, slide way, cap screwing device, transmission and others.
The transmission of the cap screwing machine is drive to the gear by the reduce, the power is transferred to the cap screwing head through the hollow main axle.

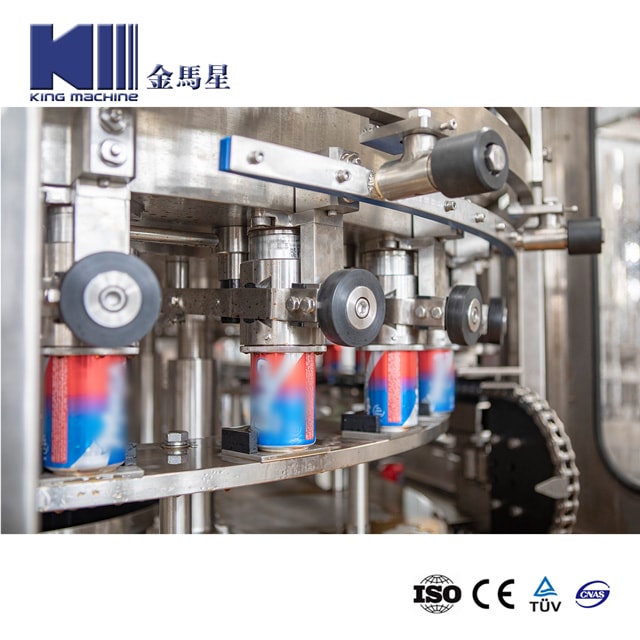

The can is not rotating, the four small rolls will rotate and press cap. The cam is fixed. The cap is sent into the gear ring of the screwing cap head through the stirring device and slide way. When there is a can on the convey belt, a cap will move down with the rotating of the screwing cap head and screw the cap on the can mouth.
