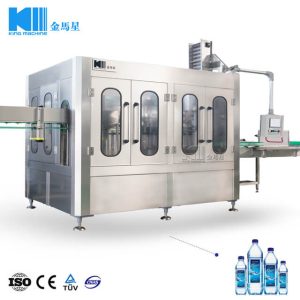

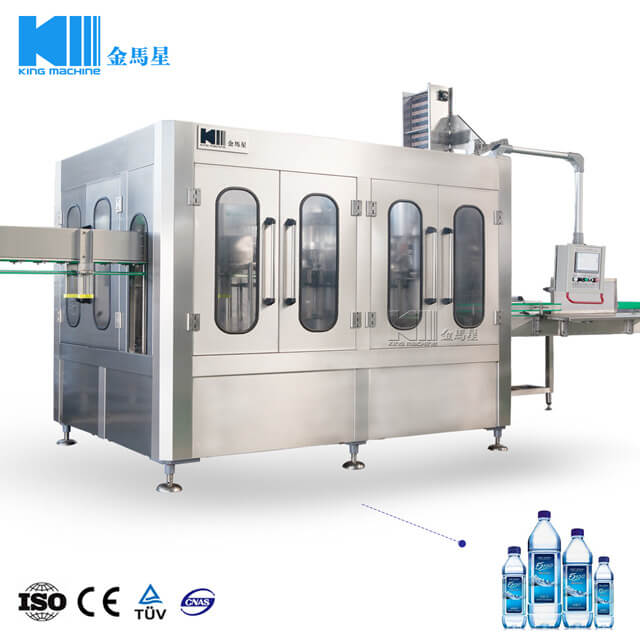

Automatic Water Filling Machine 3-IN-1 (CGF14-12-4)
Automatic Water Filling Machine is used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
- Product Category
- Water filling machine
- Juice drink filling machine
- Soft drink filling machine
- Easy open can filling machine
- 3&5 gallon filling machine
- Oil filling machine
- Wine filling Machine
- Beer filling machine
- Blowing filling capping combiblock machine
- Water treatment system
- Bottle blowing machine
- Bottle labeling machine
- Bottle packing machine

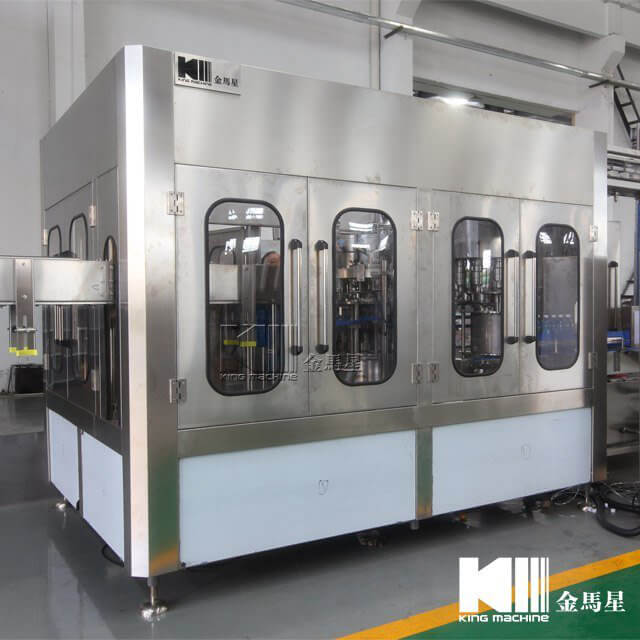

Product Description
The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water.
The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger. This water filling machine adopts advanced OMRON programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photo electrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger. This water filling machine adopts advanced OMRON programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photo electrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
CGF14-12-4 Specifications
| Washing Workstation | 14 |
| Filling Workstation | 12 |
| Capping Workstation | 4 |
| Production Capacity | 4000B/H (500ml) |
| Machine Power | 3kw |
| Machine Weight | 3200Kg |
| External Dimensions (L*W*H) | 2500 (mm) *1880 (mm) * 2300 (mm) |
| Model | Washing heads | Filling heads | Capping heads | Weight | Overall dimension (mm) |
| CGF16-16-5 | 16 | 16 | 5 | 4000kg | 2600*1900*2300mm |
| CGF18-18-6 | 18 | 18 | 6 | 4500kg | 2800*2150*2300mm |
| CGF24-24-8 | 24 | 24 | 8 | 6500kg | 3100*2450*2300mm |
| CGF32-32-10 | 32 | 32 | 10 | 7500kg | 3680*2800*2500mm |
| CGF40-40-12 | 40 | 40 | 12 | 8500kg | 4100*2800*2300 mm |
| CGF50-50-12 | 50 | 50 | 12 | 9000kg | 4500*3300*2350 mm |
| You can also customize the size you need | |||||
Application

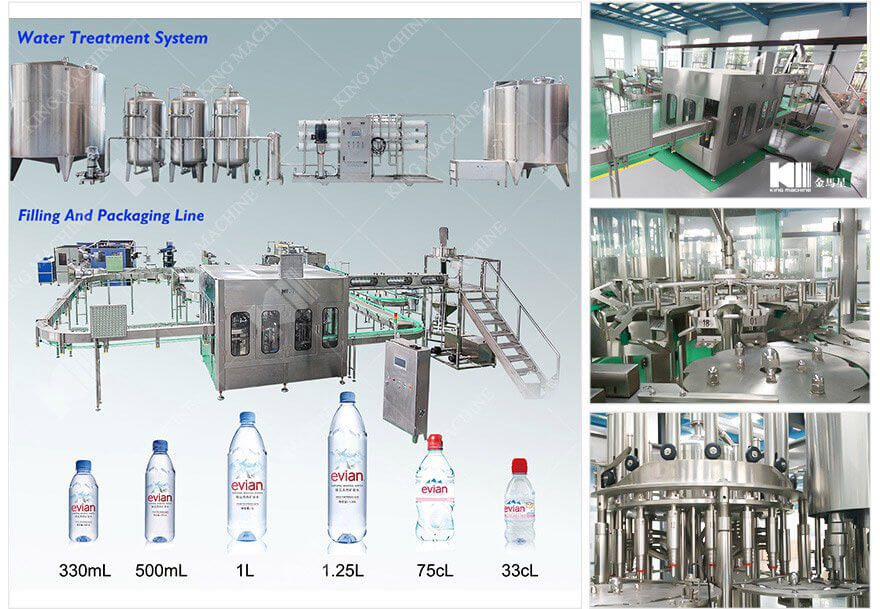

Flow chart: (Pure water filling machine):
A)Bottle production line PET Resin –Injection moulding machine -Botlte blowing machine –PET bottle
B)Water treatment system Raw water–Pump–Silica sand filter–Carbon filter–Water softner–Reverse Osmosis -UV sterilizer-Ozone generator–Finished water tank

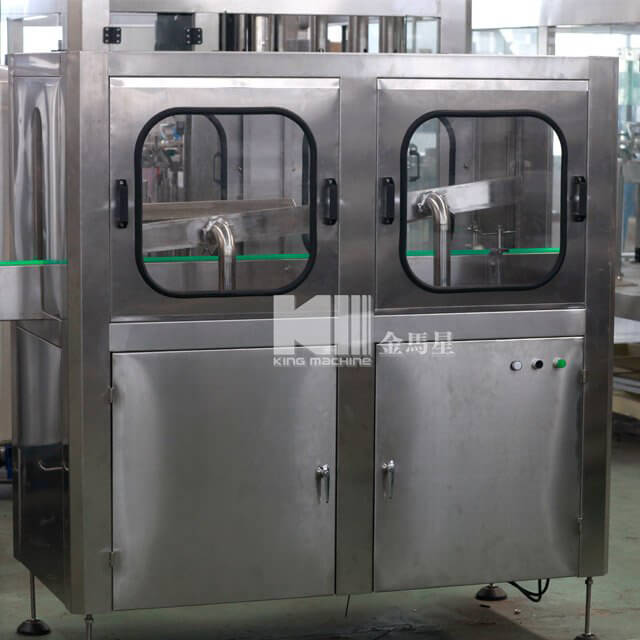

C)Filling&Packing part Bottle unscrambler–Air conveyor–Washing,filling,capping 3in1 machine–Light checker–Blow dryer–Dater printer–Lableing machine –Packing machine -Stock
Packaging
FAQ
Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines, shipping together.During the warranty time, we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid? A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
A:We will send one year enough easy broken spare parts together with the machines, shipping together.During the warranty time, we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid? A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
Auxiliary Machines

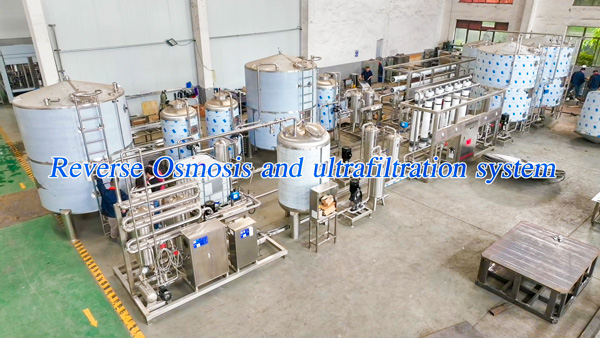

RO water treatment system
We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

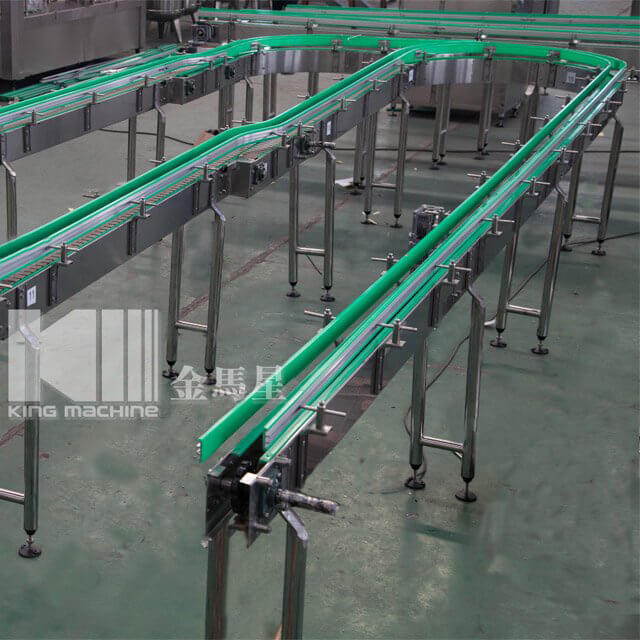

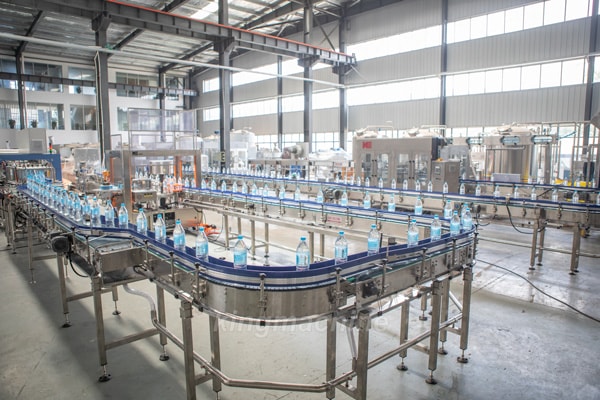

Flat conveyor
·The bottle belt is synchronously tracked with the host or the upstream and downstream equipment, which are connected to control system.
·The bottle does not fall, does not jam, and does not block during the conveying process.
·According to the user’s needs, the buffer platform can be set in front of the labeling machine (the buffering time is usually about 1-2 minutes).
·The bottle does not fall, does not jam, and does not block during the conveying process.
·According to the user’s needs, the buffer platform can be set in front of the labeling machine (the buffering time is usually about 1-2 minutes).

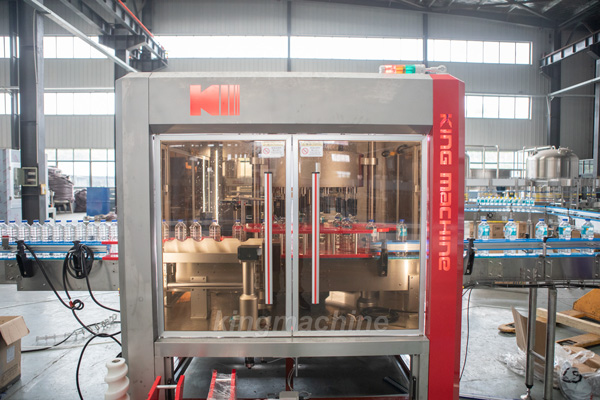

Automatic labeling machine
1.Hot melt glue labeling machine is widely used for different material of container.
2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
3.It is the most economical models in cost to make mass production and intergrated operating.
4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.
2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
3.It is the most economical models in cost to make mass production and intergrated operating.
4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.

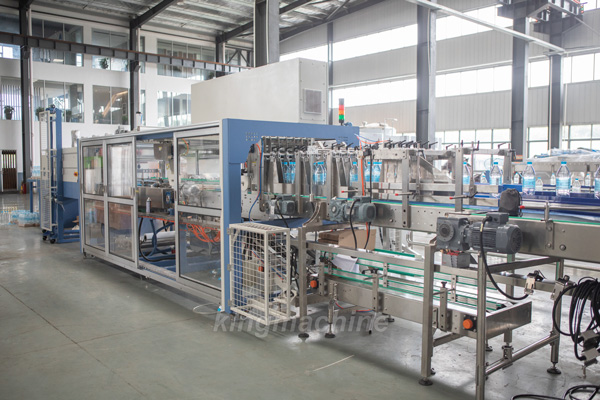

PE film packaging machine
Automatic PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
