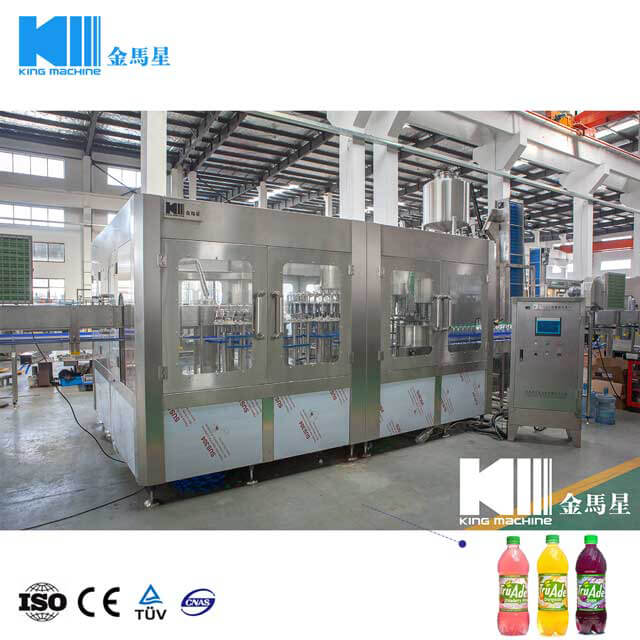

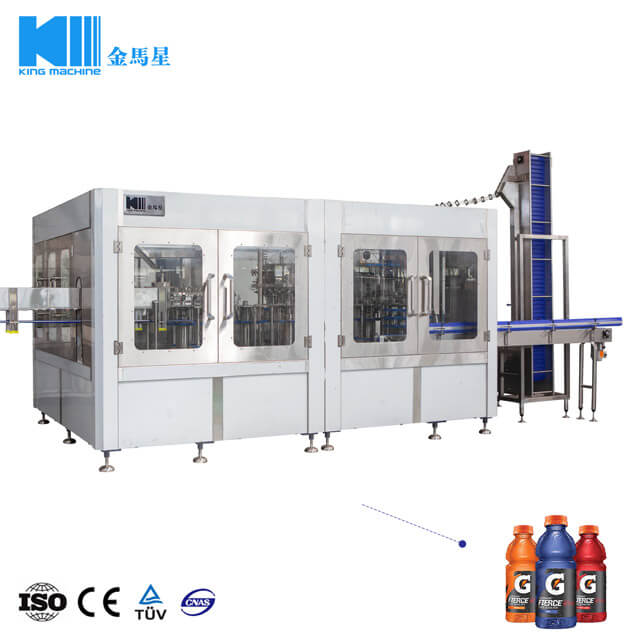

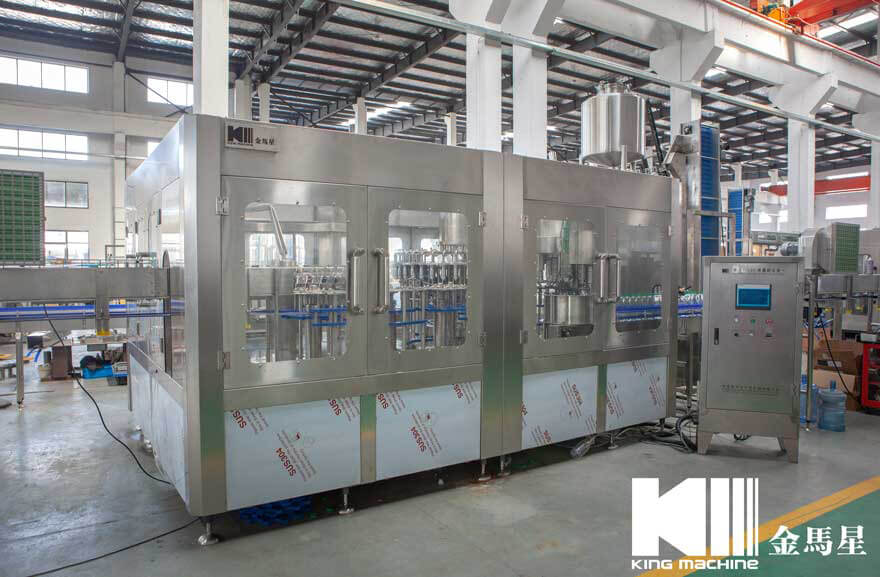

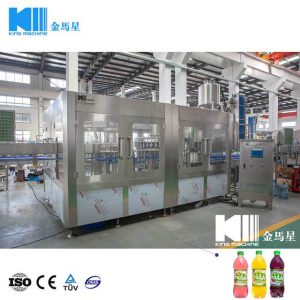

Automatic Energy Drinks Bottling Plant Machine Monoblock
1. RCGF40-40-10 bottling machine is 15000BPH
2. Automatic washing filling capping 3 in 1
3. SS304 stainless steel
4. SIEMENS programmed controller (PLC)
5. ISO9001, CE, SGS, BV, SONCAP
- Product Category
- Water filling machine
- Juice drink filling machine
- Soft drink filling machine
- Easy open can filling machine
- 3&5 gallon filling machine
- Oil filling machine
- Wine filling Machine
- Beer filling machine
- Blowing filling capping combiblock machine
- Water treatment system
- Bottle blowing machine
- Bottle labeling machine
- Bottle packing machine
Product Description
1.RCGF washing,filling capping 3in1 machine is mainly used in the juice filling operations.
2.The three functions of bottle rinsing, filling and capping are composed in one body of the machine.
3.The whole process is automatic.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
4.It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity
2.The three functions of bottle rinsing, filling and capping are composed in one body of the machine.
3.The whole process is automatic.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
4.It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity

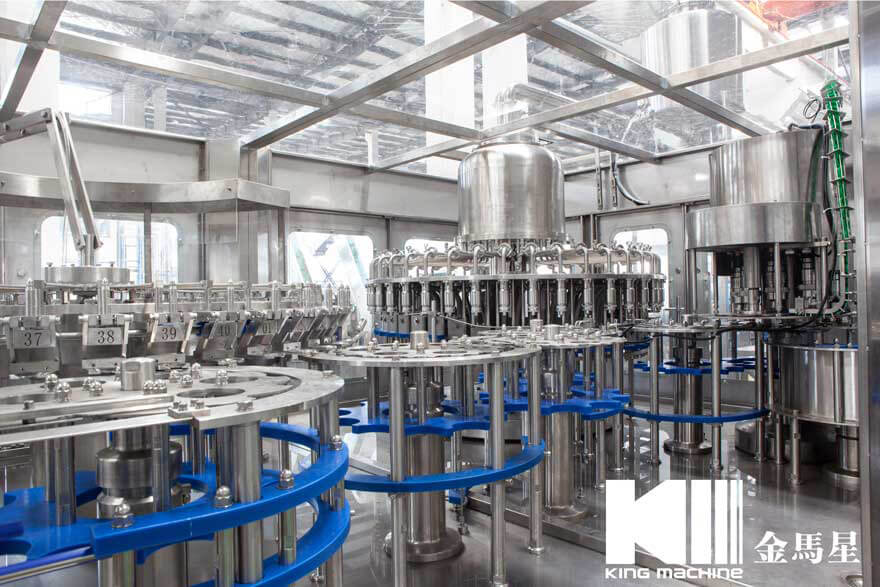

Inside structure：
| Containers and specifications | ||||
| Project Name: Full Automatic Complete Juice 2000-20000bph Production Line | Hot Filling Fruit Juice | |||
| Material | Shape | Filling volume | Filling level（mm） | Neck type |
| PET Bottle | Square or Round Bottle | 100-2000ml | Distance from bottle neck According request | As request |
| Adjustable specifications of the bottle type | 【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added. | ||||
| Juice Preparation | Fruit , Concentrate, Powder mixing ..... | |||
| Container Label & Control Mode | Packaging system | Palletizing system | ||
| Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic | Packing system | Min, Spec. | Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer | |
| Manual Film shrinker Wrap Around packer Robert Packing Machine | 1*2 2*3 3*4 4*6 3*5 | |||
| User Ambient Conditions | Temperature：10～40℃；Humidity：No dew | |||
| User Electrical Supply Specification | Voltage：380V±5%， 3phase； Frequency：50HZ±1% | |||
| Model | Washing heads | Filling heads | Capping heads | Capacity 500ml(bph) | Bottle size (L) |
| RCGF14-12-4 | 14 | 12 | 4 | 1500 bph | 0.25-2L |
| CGF16-16-5 | 16 | 16 | 5 | 3000 bph | 0.25-2L |
| CGF18-18-6 CGF24-24-8 | 18 24 | 18 24 | 6 8 | 4000-5000 bph 8000-9000 bph | 0.25-2L 0.25-2L |
| CGF32-32-10 | 32 | 32 | 10 | 10000-12000bph | 0.25-2L |
| CGF-40-40-12 | 40 | 40 | 12 | 14000-15000 bph | 0.25-2L |
| You can also customize the juice filling machine size you needed | |||||
