Product Description

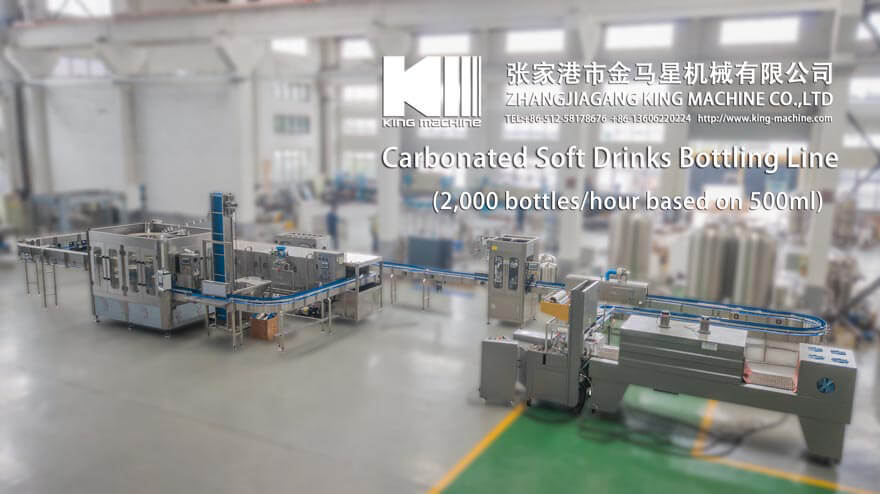

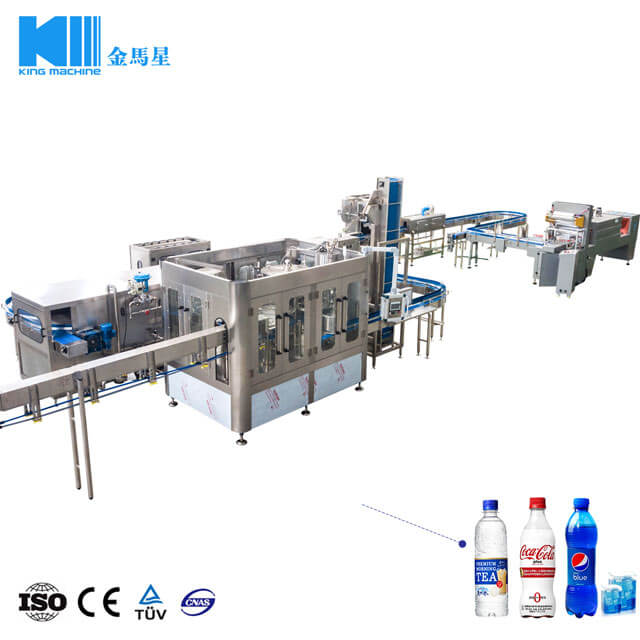

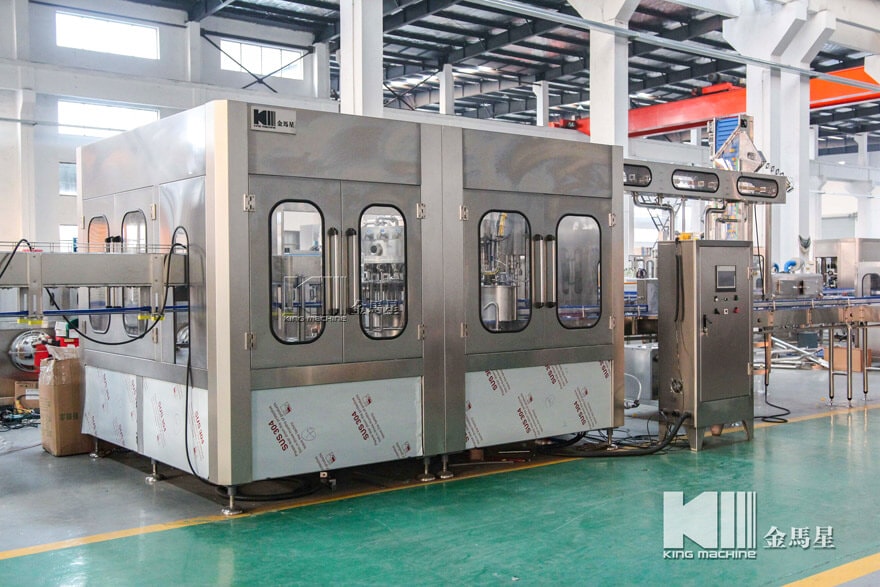

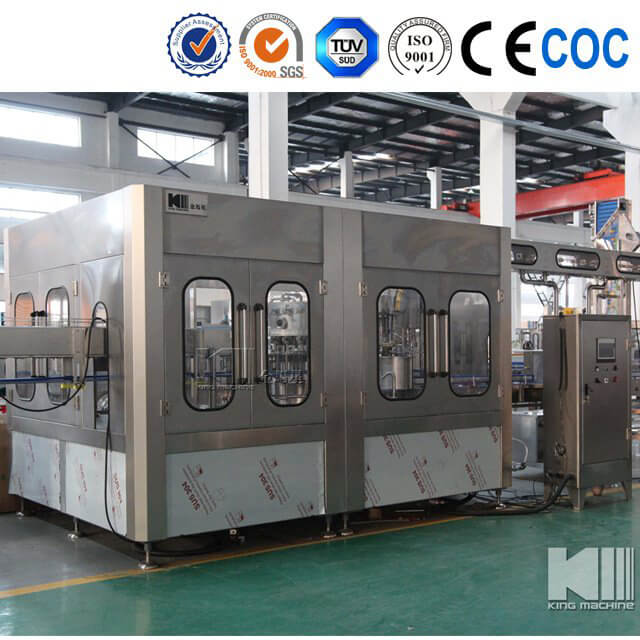

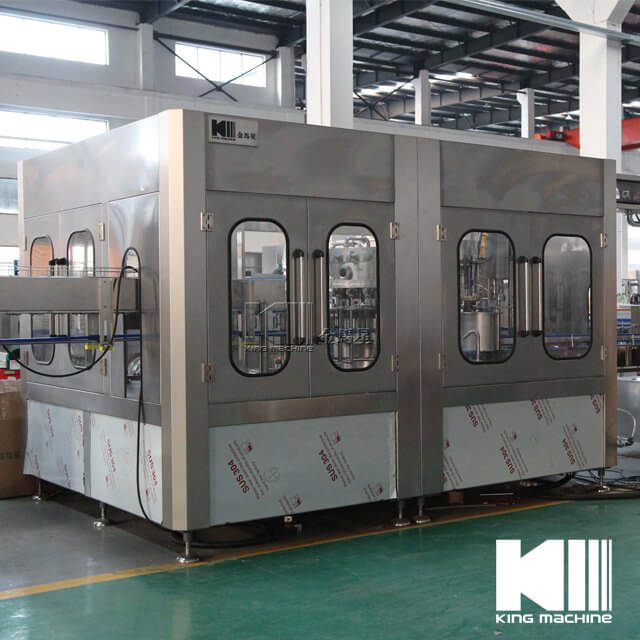

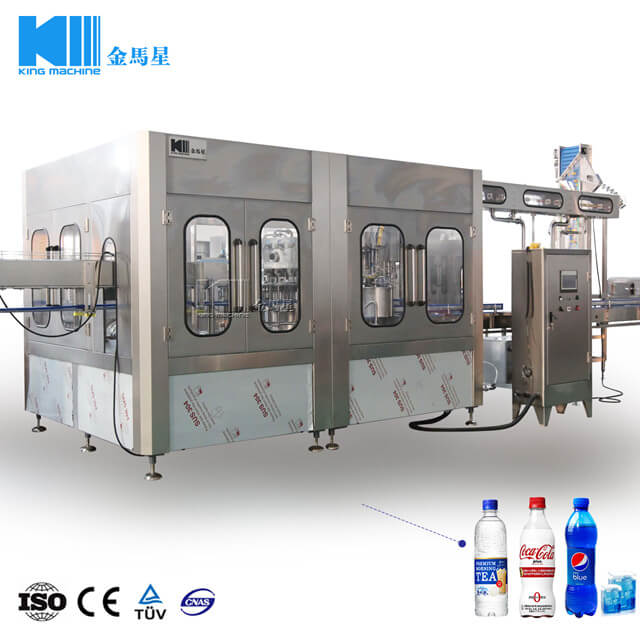

The machine is mainly used for carbonated soft drinks filling and soda water drinks filling and sparkling water filling . It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
| Model | DCGF14-12-4 | DCGF16-16-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 |
| Rinsing head | 14 | 16 | 18 | 24 | 32 |
| Filling head | 12 | 16 | 18 | 24 | 32 |
| Capping head | 4 | 5 | 6 | 8 | 10 |
| Power of main motor | 3 kw | 3 kw | 3 kw | 4 kw | 4.8 kw |
| Total weight | 2.8 T | 3.2 T | 3.6 T | 4.5 T | 4.8 T |
| Capacity | 2000-3000 | 3000-5000 | 6000-8000 | 8000-12000 | 12000-15000 |
| Bottle diameter | 50-80mm | 50-80mm | 50-80mm | 50-80mm | 50-80mm |
| Bottle height | 160-320mm | 160-320mm | 160-320mm | 160-320mm | 160-320mm |
| Method of changing speed | Frequency conversion | Frequency conversion | Frequency conversion | Frequency conversion | Frequency conversion |
| Power of unscramble motor | 0.37 kw | 0.37 kw | 0.37 kw | 0.37 kw | 0.37 kw |
| Supply presure of rinsing water | =0.06Mpa=0.2Mpa | =0.06Mpa=0.2Mpa | =0.06Mpa=0.2Mpa | =0.06Mpa=0.2Mpa | =0.06Mpa=0.2Mpa |
