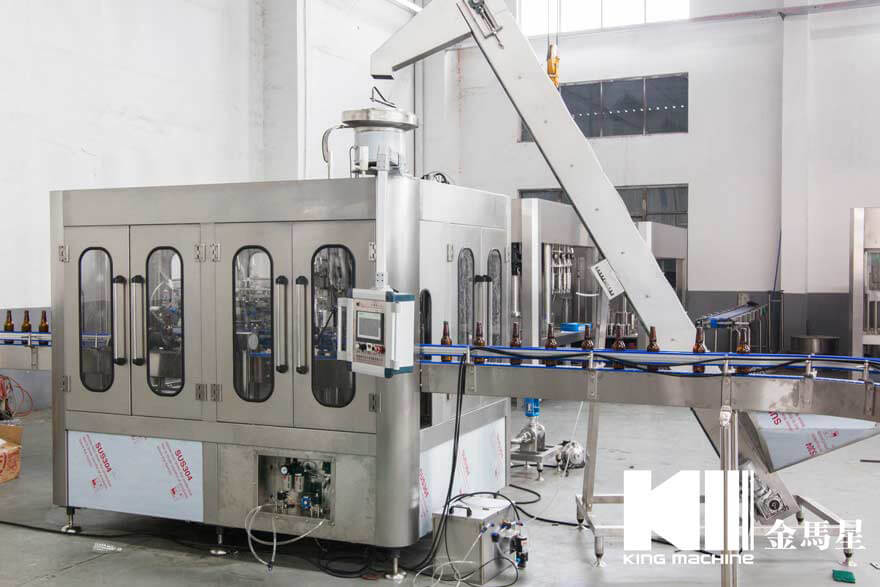

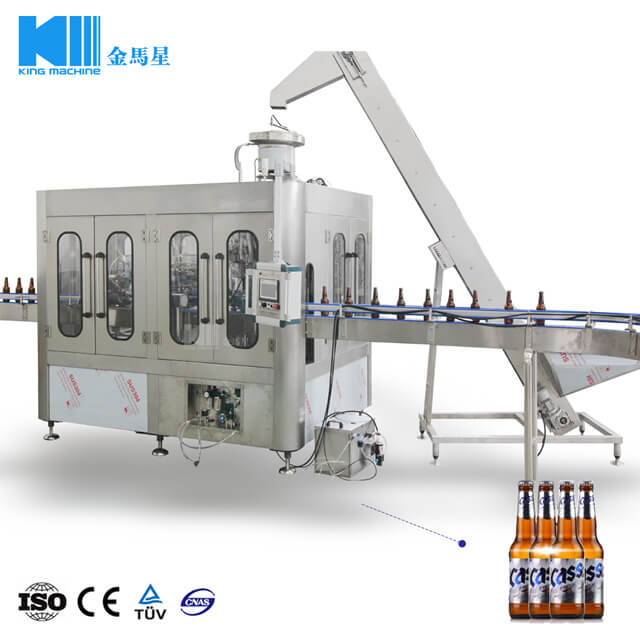

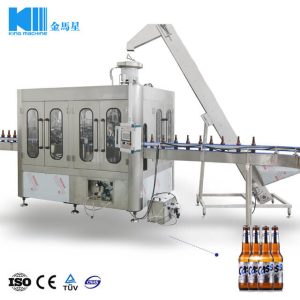

Automatic Beer Washing Filling Capping Machine（BGF14-12-4)3 in 1 Unit
- Product Category
- Water filling machine
- Juice drink filling machine
- Soft drink filling machine
- Easy open can filling machine
- 3&5 gallon filling machine
- Oil filling machine
- Wine filling Machine
- Beer filling machine
- Blowing filling capping combiblock machine
- Water treatment system
- Bottle blowing machine
- Bottle labeling machine
- Bottle packing machine
Product Description
Features:
1. With high precision me chanical filling valves, our BGF beer washing filling capping 3-in-1 unit stops vacuumizing when there are no bottles.
2. The BGF beer washing filling capping 3-in-1 unit is equipped with external mechanical valve, inside which there is no spring or sealing element.
3. With high pressure frothing device, it is capable of double vacuum-pumping.
4. The BGF beer washing filling capping 3-in-1 unit makes use of combined transmission by open gear and gearbox, and adopts frequency conversion stepless speed control, extending the speed modulating scope.
5. The machine has an automatic lubricating device so that the lubrication points can be automatically lubricated regularly in time. Also, our BGF beer washing filling capping 3-in-1 unit has high transmission efficiency, low noise and long life.
6. In case of the blowout due to poor quality of the bottles during gas or beer filling, the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.
7. With a full stainless steel magnetic hopper, the unscrambling, feeding and discharging of crown caps are all performed by magnetic force. The caps are free from deforming, and can flow smoothly in large quantities during transmission.
8. The capper has the function of automatic deloading, which helps lower the bottle breakage.
9. For the centering guide of our BGF beer washing filling capping 3-in-1 unit, we adopt double guide-bar mechanism, with the function of pre-covering which allows stable and reliable bottle transferring.
10. The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.
11. The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.
| Model | BGF14-12-4 |
| Output (BPH) | 2000-3000 |
| Way of filling | Filling at equal pressure |
| Filling temperature(℃) | 2-7 |
| Bottle type | Glass bottles; Bottle neck:∮50-90mm; Bottle height: 150-330mm |
| Power of main motor | 2.2 |
| Machine size (L*W*H) | 1.8X1.7X2.1 |
| Weight (KG) | 2500 |
Washing Parts.
Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

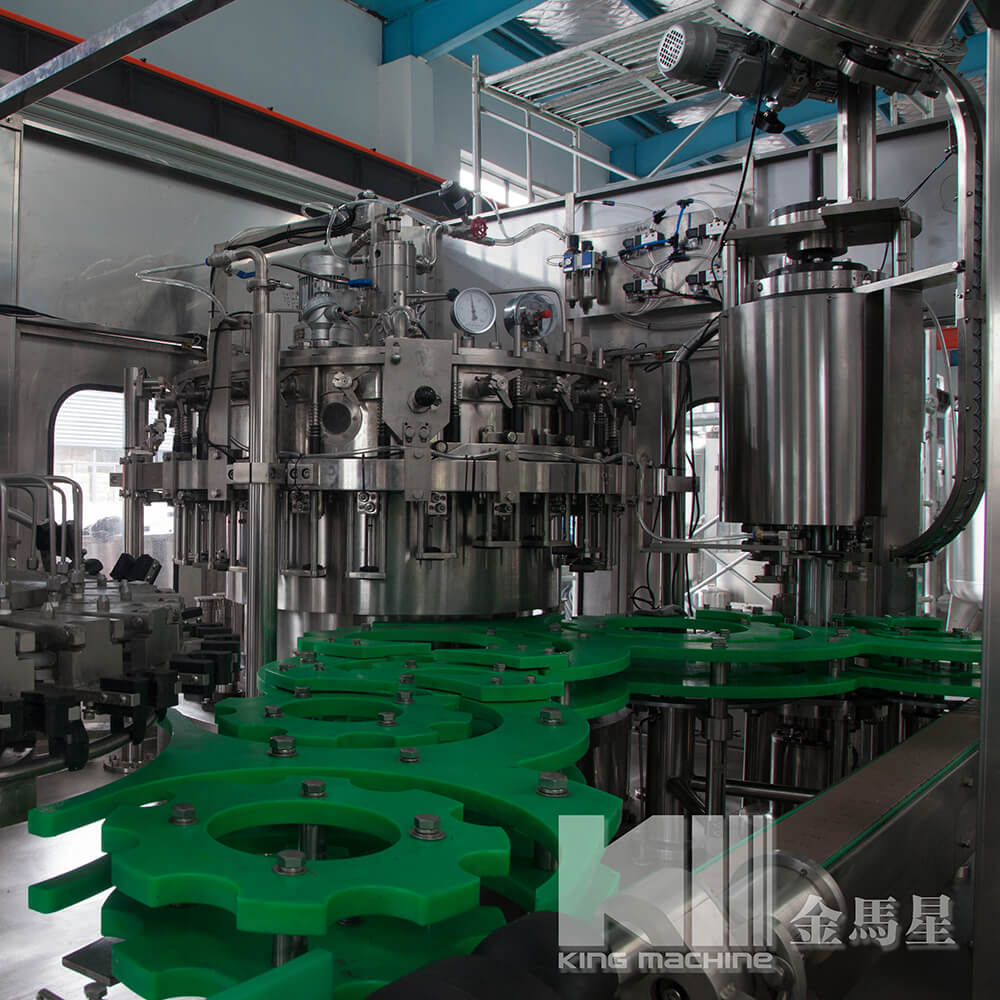

Filling Parts.
The Automatic Glass Bottle Beer Filling Machine adopts the advanced international technology .The design is scientific and reasonable ,appearance is beautiful ,operation and maintenance are convenient ,and it is with high degree of automatic. It is the good machine for choosing by the drinking filling factory.

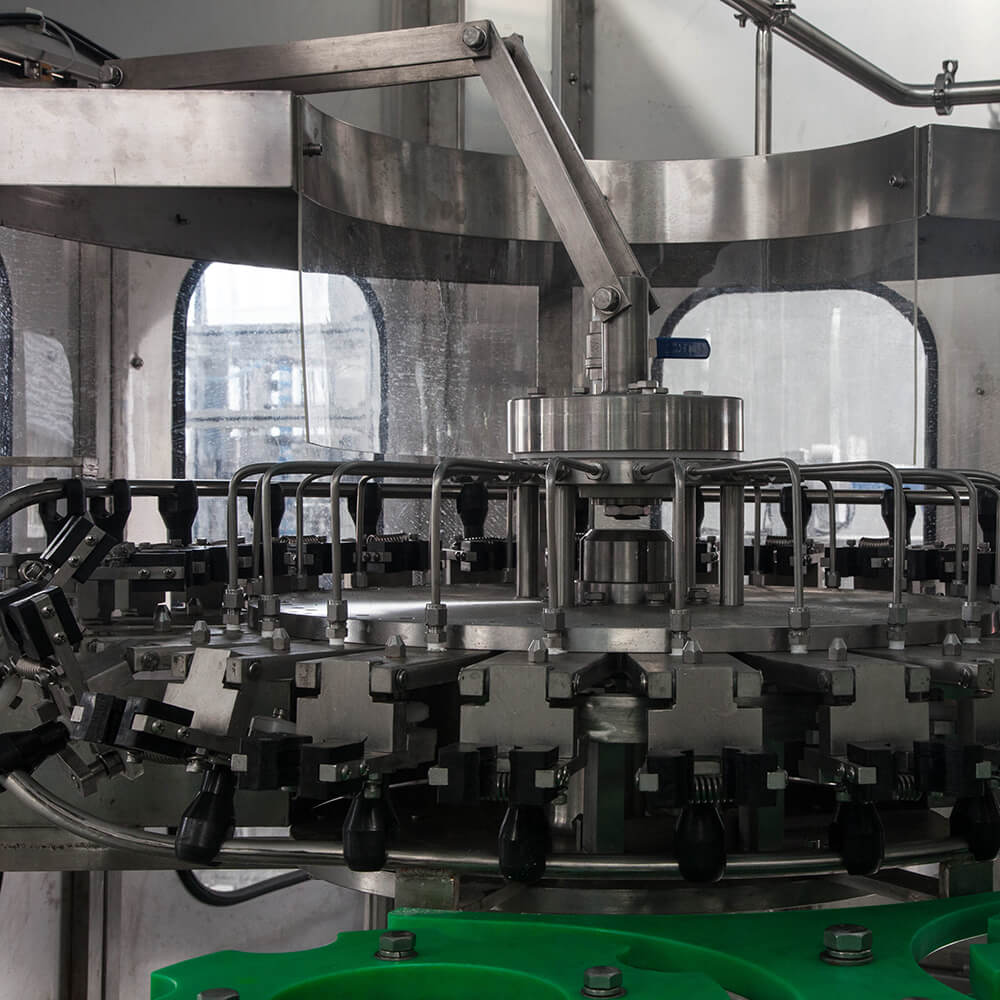

Filling Heads.
Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.
Capping Parts.
This series of Automatic Glass Bottle Beer Filling Machine can meet the filling-sealing requirements of different sealing manners for crown cap /screw cap or others.
Adopting crowning the caps with magnetic force,which passes the torque with powerful and constant magnet,and the torque can be adjusted to meet the need of many kind of caps.
