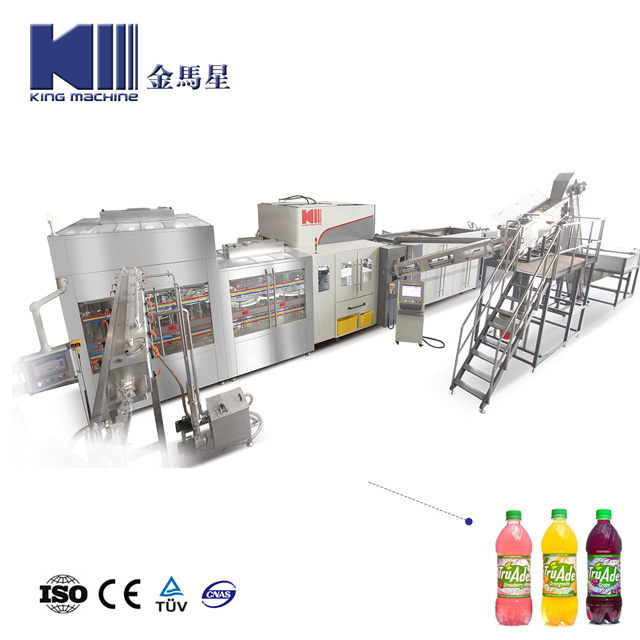

24000bph Pet Blow-Fill-Cap Combi Line For hot filling juice
Our combi block machine capacity can reach for example like water production 0.5l bottle capacity is 12,000bph to 54,000bph
- Product Category
- Water filling machine
- Juice drink filling machine
- Soft drink filling machine
- Easy open can filling machine
- 3&5 gallon filling machine
- Oil filling machine
- Wine filling Machine
- Beer filling machine
- Blowing filling capping combiblock machine
- Water treatment system
- Bottle blowing machine
- Bottle labeling machine
- Bottle packing machine
Product Description

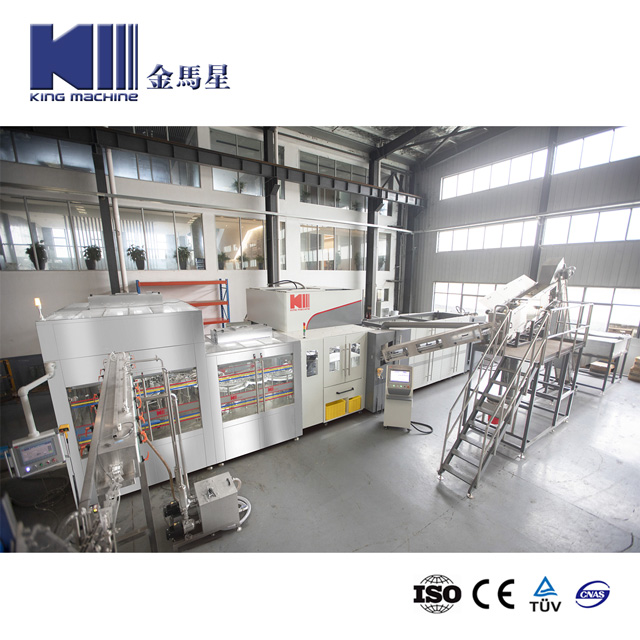

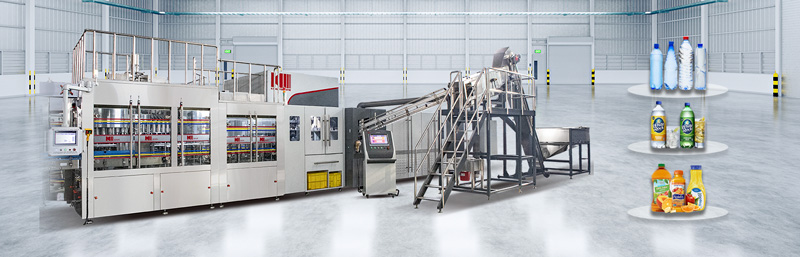

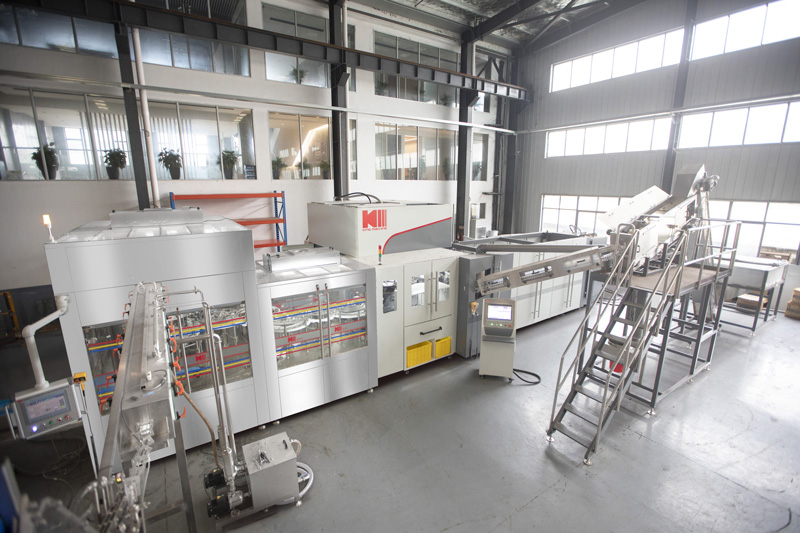

We have developed a multi-functional blowing filling and capping combination block, through the applicant of optical , mechanical, electrical and pneumatic integration, it adopts servo system for synchronous control, realize the comprehensive control and production of multiple equipment, improve the production efficiency of the entire production line , and reduces the investment cost , energy consumption and maintenance cost. It is suitable for the production of carbonated drink, juice and water , and other products .
Our combi block machine capacity can reach
for example like water production
0.5l bottle capacity is 12,000bph to 54,000bph
And 4l 5l Capacity is 4000bph to 6000bph
15L 19l Capacity is 1500bph to 3600bph
Our combi block machine single cavity capacity can reach 2000bph to 2500bpb.

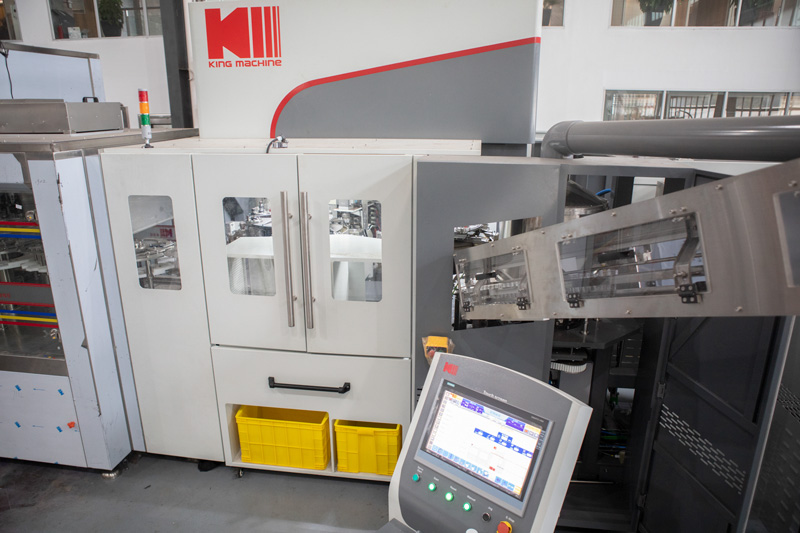

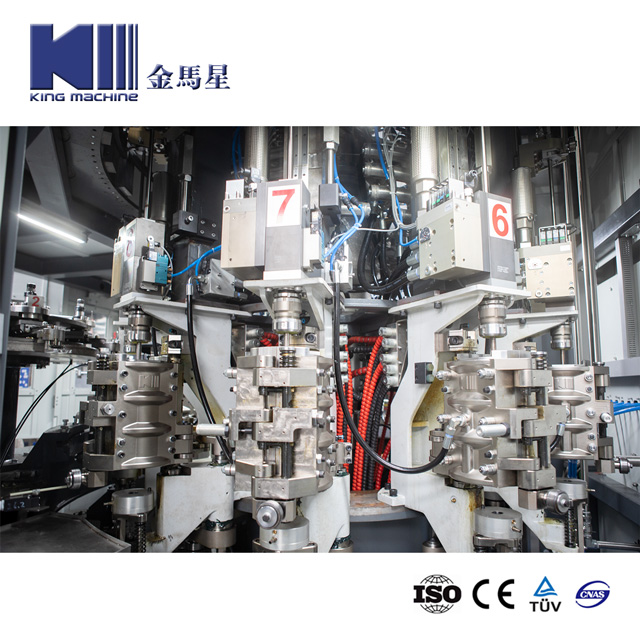

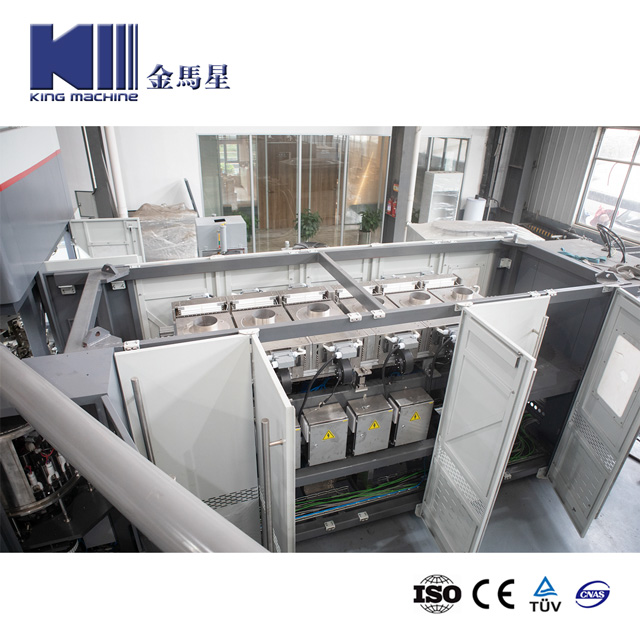

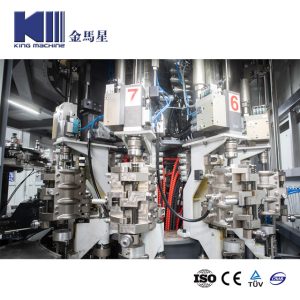

Blowing part
Our New combi-block for hot filling juice with pulp (85 degree Filling).
If you want to blow out this high temperature resistant bottle, the mold must use thermal oil to ensure that the temperature is 120-140 degrees.
The mold has a heat insulation plate, which does not directly contact the mold shell, so that the sealing ring on the mold shell will not be damaged by excessive temperature.
If you want to blow out this high temperature resistant bottle, the mold must use thermal oil to ensure that the temperature is 120-140 degrees.
The mold has a heat insulation plate, which does not directly contact the mold shell, so that the sealing ring on the mold shell will not be damaged by excessive temperature.

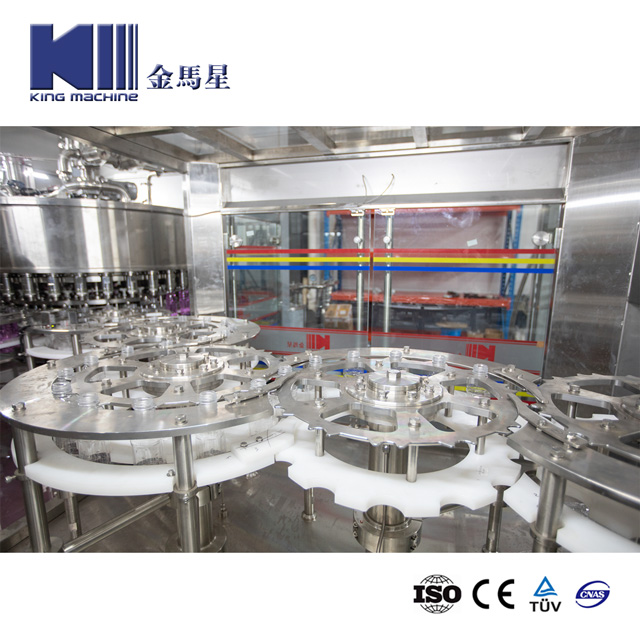

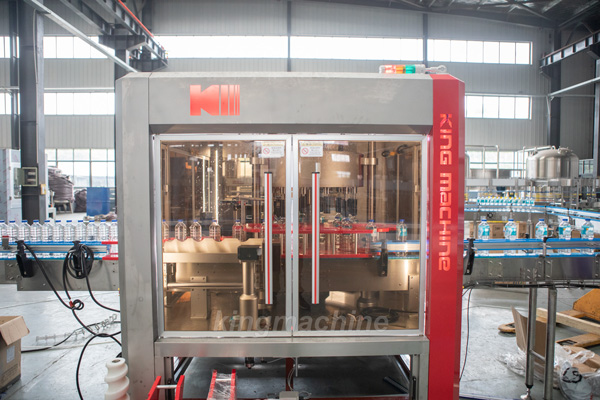

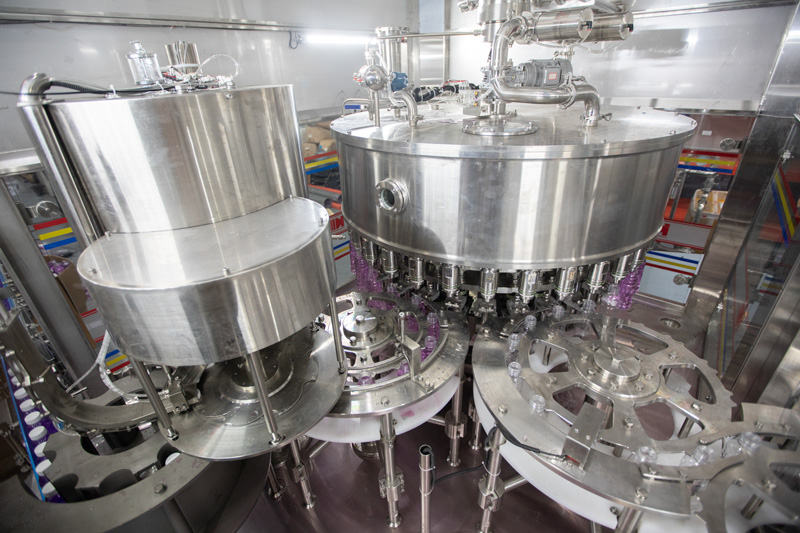

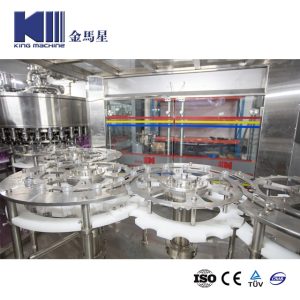

Washing Filling Capping
The machine is mainly used in the hot juice filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling hot juice and with plup in bottles made of polyester and plastics.

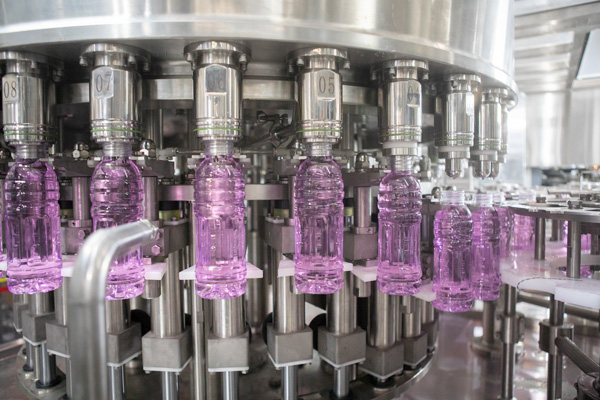

Eccentric valve
For the filling part, the eccentric valve can fill 10mm pup , and can be loaded with CIP fake cups for easy cleaning.

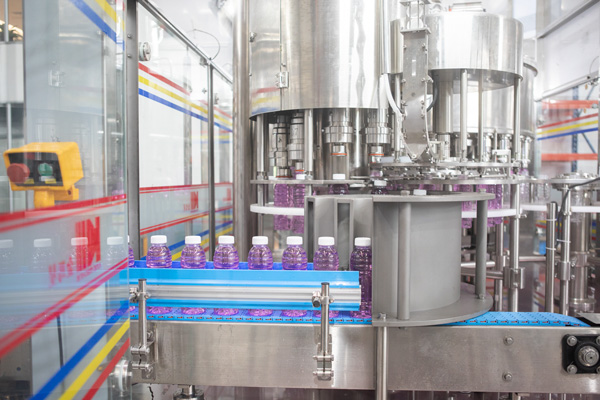

Magnetic Hysteresis Constant Torque Screw Cap Head
It provides precise cap gripping, no pulse impacts, no jamming, no noise, high stability, and adjustable torque. This improves capping quality, enhances product quality and production capacity, and reduces energy consumption and material waste.
The estimated scrap rate will decrease by 60%, with the scrap rate dropping to 0.05% (5 parts per 10,000), and the crooked cap ratio reduced to 0.03% (3 parts per 10,000), which is well above the enterprise standard of 0.3%.
Auxiliary machines

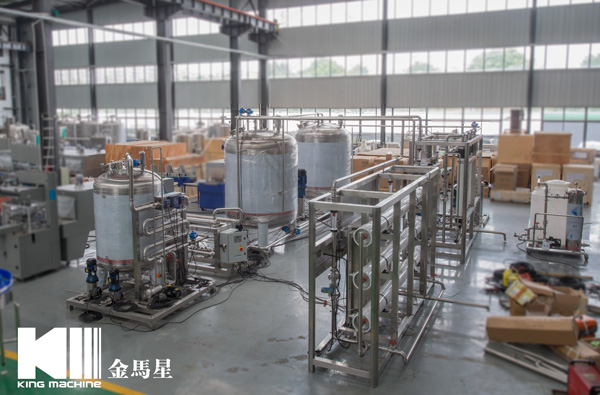

RO water treatment system
We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

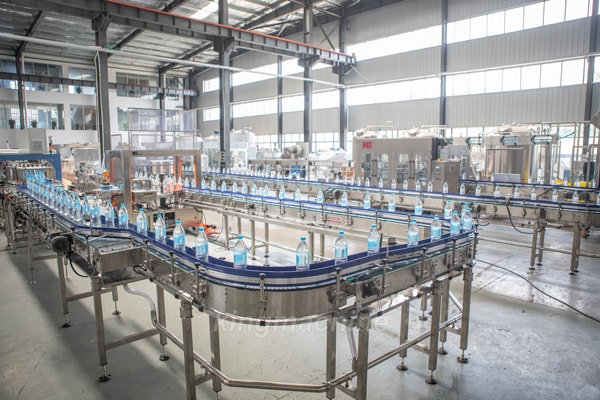

Flat conveyor
·The bottle belt is synchronously tracked with the host or the upstream and downstream equipment, which are connected to control system.
·The bottle does not fall, does not jam, and does not block during the conveying process.
·According to the user’s needs, the buffer platform can be set in front of the labeling machine (the buffering time is usually about 1-2 minutes).
Automatic labeling machine
1.Hot melt glue labeling machine is widely used for different material of container.
2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
3.It is the most economical models in cost to make mass production and intergrated operating.
4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.
2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
3.It is the most economical models in cost to make mass production and intergrated operating.
4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.

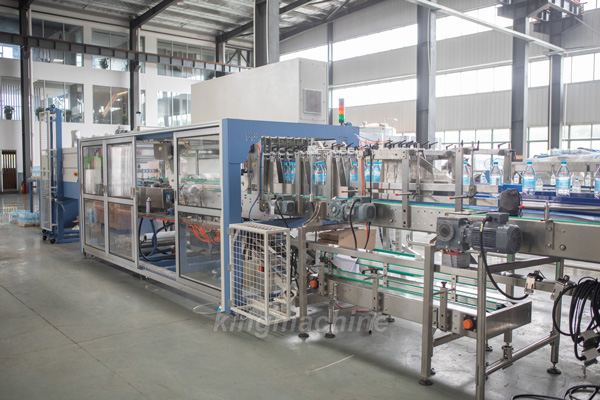

PE film packaging machine
Automatic PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
