Product Description

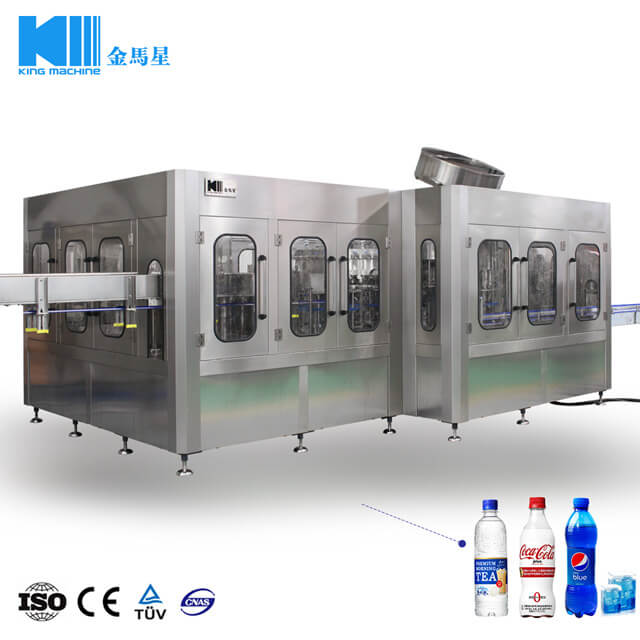

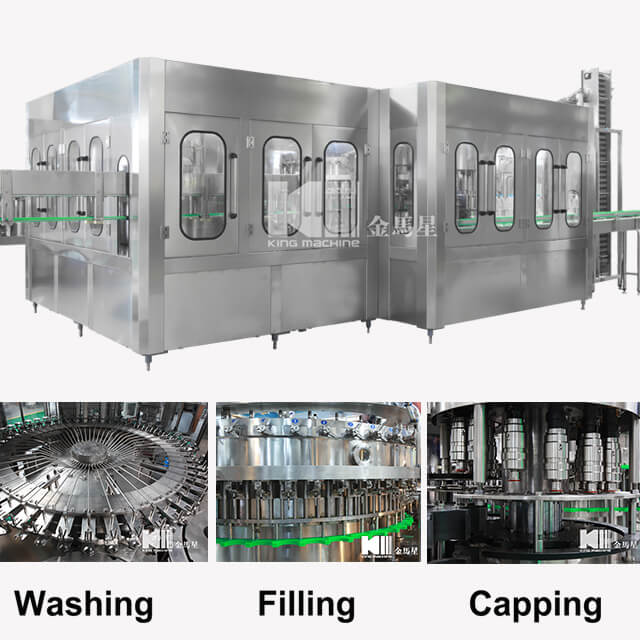

DCGF50-50-15 washing,filling capping 3in1 machine is mainly used in the Equal pressure filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated beverage in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. . Therefore the output and benefit of the machine is higher than the machines of the same specifications. The advanced Mitsubishi programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably . It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity,it is the best choice for the beverage plant.
| Number of washing positions | 50 |
| Number of filling positions | 50 |
| Number of capping positions | 15 |
| Capacity based on 500ml | 16000-20000bottles/hour |
| Suitable bottle height (mm) | 160-320 |
| Suitable bottle diameter (mm) | ¢50-¢115 |
| Power of main motor (KW) | 11kw |
| Water pressure (Mpa) | 0.25-0.3Mpa |
| Filling type | Equal pressure |
| Filling temperature | 3~4 degree |
| Shape dimension | 5500MM*3500MM*2500MM |
| Weight | 10000kg |
| Suitable bottle | PET bottle with screw cap |
Packaging
FAQ
Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines, shipping together.During the warranty time, we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid? A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
