Product Description

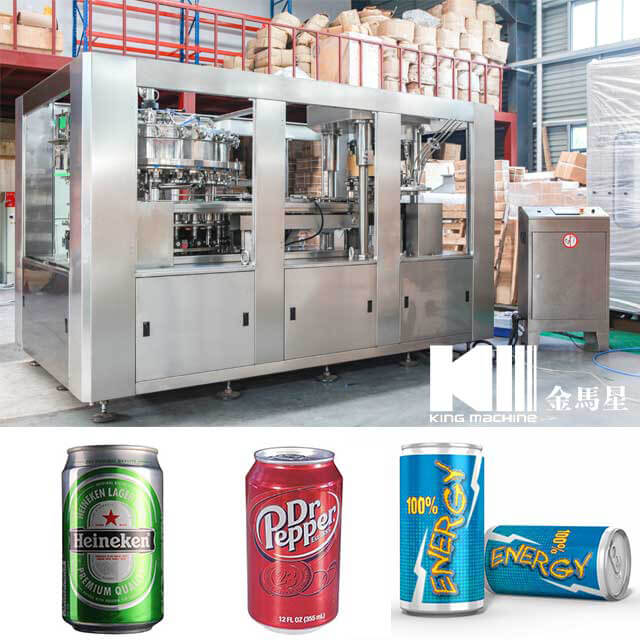

Aluminum Can Carbonated Soft Drink Beverage Filling and sealing machine

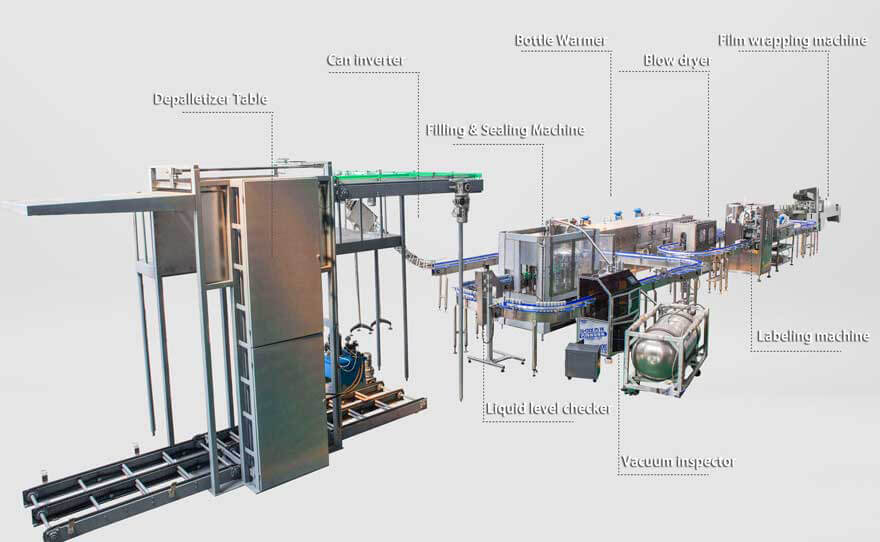

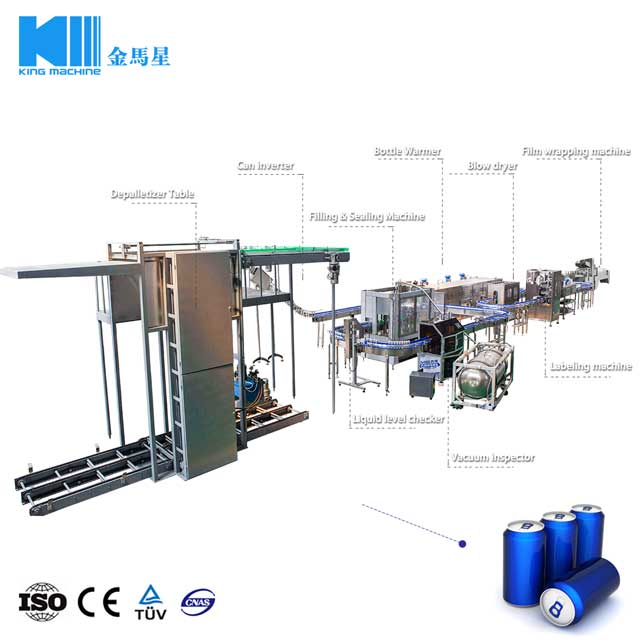

* we provide the complete pop cans / tin can filling and package solution ,from juice processing system , water treatment plant , can depalletizer ,can rinsing machine ,can filling & sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,juice , CSD industry and so on.

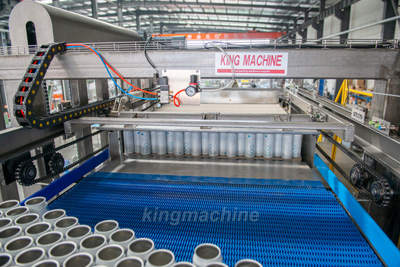

Can de-palletizer
•replace the manual can arrangement
•increase production efficiency

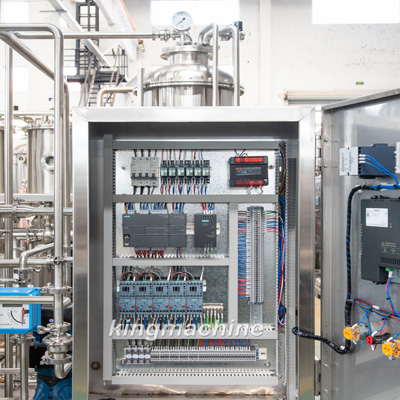

•plc programmable computer automatic controller ,photo-electricity switch,over travel-limit switch.
| Model | GT14-4(A) | GT18-4(A) | GT24-6(A) |
| Can size | Depends customer | Depends customer | Depends on customer |
| Filling Temperature | 0-4℃ | 0-4℃ | 0-4℃ |
| Filling head | 12 | 18 | 24 |
| Sealing Head | 4 | 4 | 6 |
| Capacity | 100-120cans/min | 120-150cans/min | 150-200cans/min |
| Power | 5.5kw | 5.5kw | 7.5kw |
| Overall size | 2800×1600×2000 | 3000×1700×2000 | 3200×1800×2000 |
| Weight | 3500kgs | 4000kgs | 4500kgs |
1.The equipments constitute Mainly the filling machine is from the filing urn and the filling valve. After can is washed, it is transferred to the filling machine through the middle spider. The star wheel will stuck can and sent them into the filling machine. The base will support the can to rotate around the filling machine, and the roll will open, the liquid will into can.
2.The filling principle: In this machine of infuse and filling valve for equal take press the pressure type to filling, the speed is slow, the accuracy is high and thus guarantees to the filling quantity.

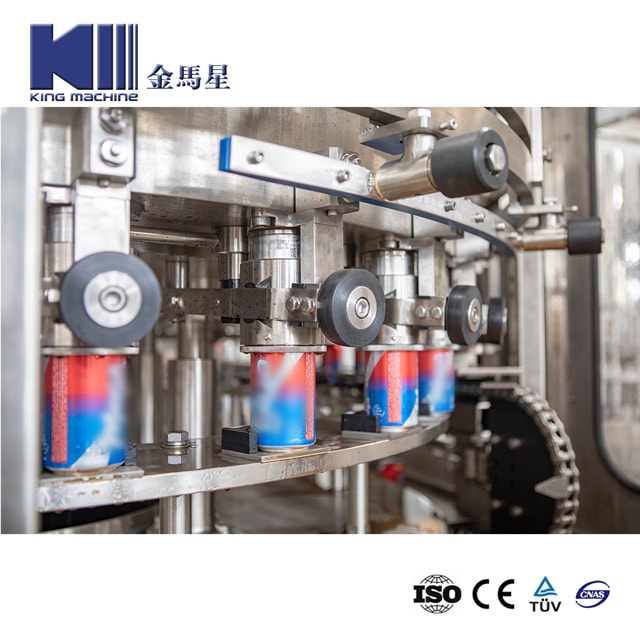

3.The filling valve The filling valve is one of the key parts that the filling machine, the filling valve is make up of the valve core, valve body ,valve seat , umbrella?wide liquid valve—etc— 3.1. When can from in the center the star round enters a can-base of board, the filling valve taking the valve coat, the valve core is together up move, at this time 0 type roll 1 take off with the valve seat to open, enter the filling district. 3.2.The material continue downflow, until the bottle filling up ,when the rolls round to carry on the cam, the filling valve to move up,0 type circle 1compress tightly the valve body, make the material no longer enter the valve tube of the valve core.

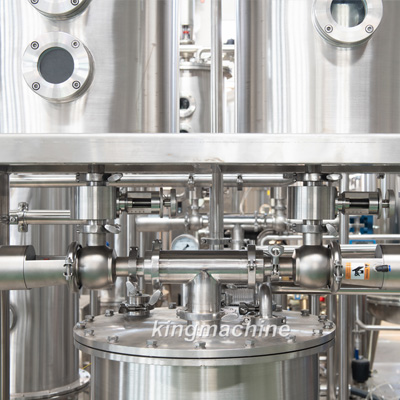

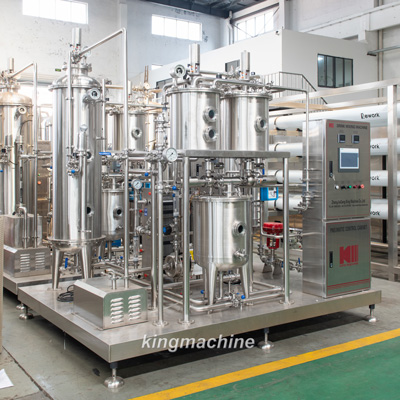

Carbonated Drink Mixing Part
•Wide range of uses – The system can handle a wide range of products such as carbonated drinks, juice drinks, etc.
•Structural Hygiene – All parts in contact with fluids are of high quality stainless steel, all tanks are equipped with CIP ball for easy cleaning.
