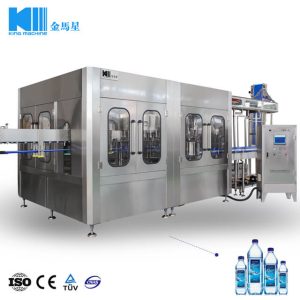

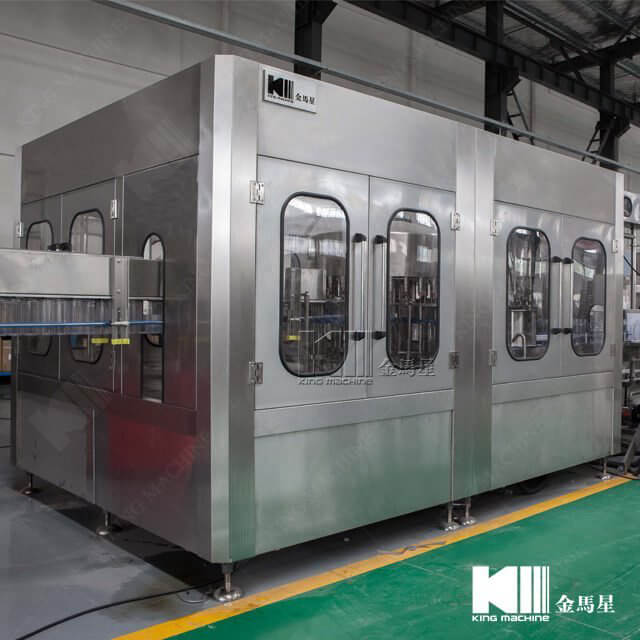

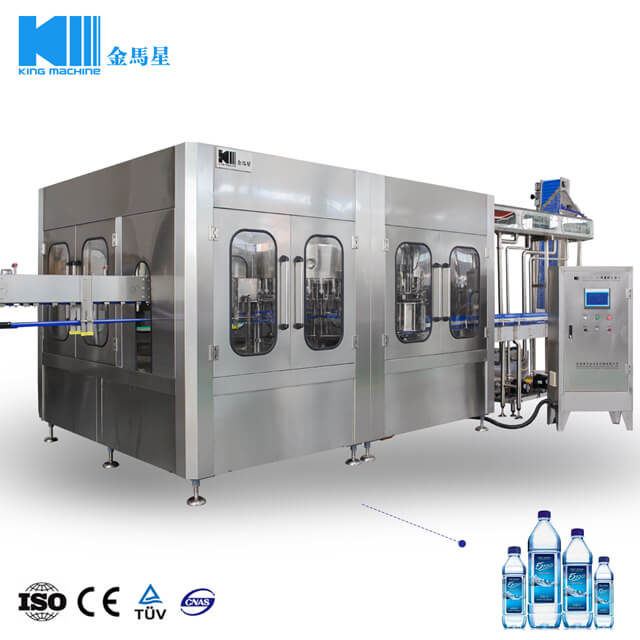

15000BPH Automatic Water Bottling Machine (3-in-1) CGF32-32-10

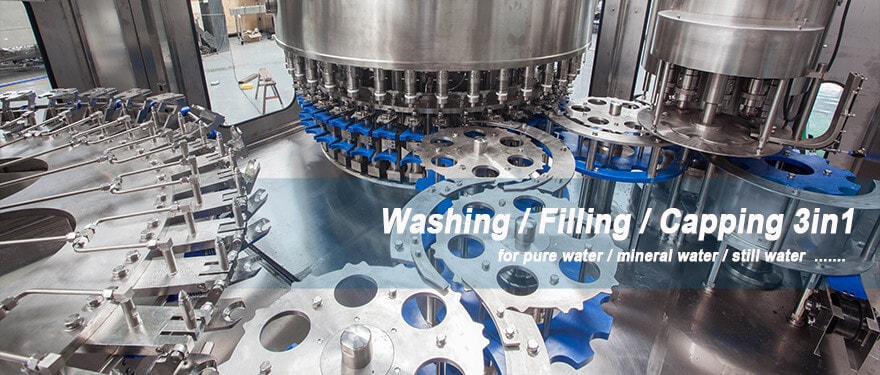

1. CGF32-32-10 Water bottling machine is 15000BPH

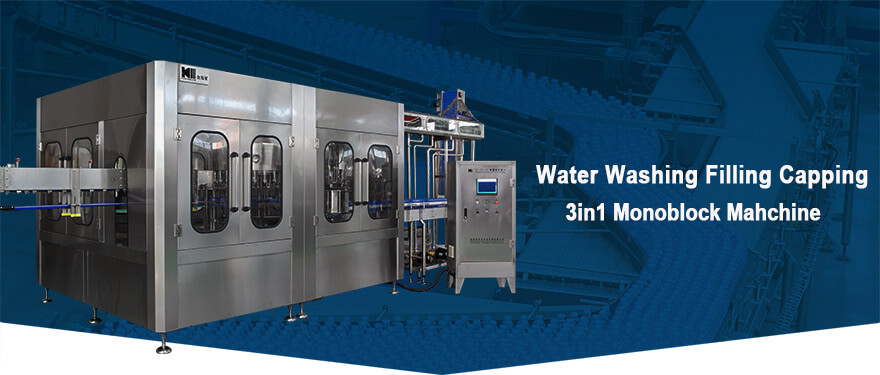

2. Automatic Washing Filling Capping Machine (3-in-1)
3. SS304 stainless steel
4. SIEMENS programmed controller (PLC)
5. ISO9001, CE, SGS, BV, SONCAP
- Product Category
- Water filling machine
- Juice drink filling machine
- Soft drink filling machine
- Easy open can filling machine
- 3&5 gallon filling machine
- Oil filling machine
- Wine filling Machine
- Beer filling machine
- Blowing filling capping combiblock machine
- Water treatment system
- Bottle blowing machine
- Bottle labeling machine
- Bottle packing machine
Product Description
Automatic Mineral Water Bottling Plant Cost
Water is a multifacted product: natural spring water, purified water, carbonated water, flavored water… What process can be used to prevent bromate formation? How to deploy mechanical filling valves to keep water crystal clear and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? King Machine, the expert in liquid product filling, will always provide you with the best solution for your products.
| Project name :Cost of pure water bottling machine | ||||||
| Model | CG8-8-3 | CGF14-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 |
| Capacity(500ml bottles) | 2000 | 3000-4000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000 |
| Suitable bottle shapes | PET circular or square | |||||
| Bottle diameter(mm) | Dia50-Dia115mm | |||||
| Bottle height (mm) | 160-320mm | |||||
| Compressor air pressure(Mpa) | 0.3-0.7Mpa | |||||
| Washing meidum | Aseptic water | |||||
| Rinsing pressure(Mpa) | >0.06Mpa<0.2Mpa | |||||
| Application | Bottle water filling machine | |||||
| Total power (KW) | 4.4 | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 |
| Overall dimensions(L*W) | 2.3*1.9 | 2.5*1.9 | 2.8*2.15 | 3.1*2.5 | 3.8*2.8 | 4.5*3.3 |
| Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m |
| Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | 8000kg |

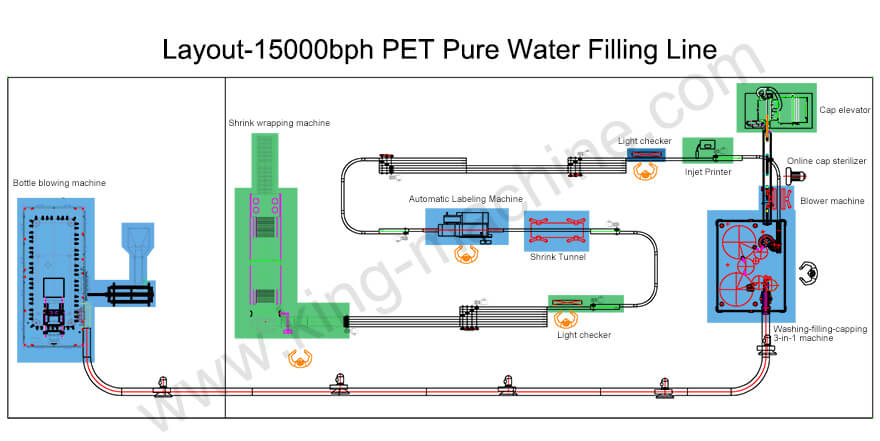

Flow chart: (Pure water filling machine):
A)Bottle production line PET Resin –Injection moulding machine -Botlte blowing machine –PET bottle
B)Water treatment system Raw water–Pump–Silica sand filter–Carbon filter–Water softner–Reverse Osmosis -UV sterilizer-Ozone generator–Finished water tank
C)Filling&Packing part Bottle unscrambler–Air conveyor–Washing,filling,capping 3in1 machine–Light checker–Blow dryer–Dater printer–Lableing machine –Packing machine -Stock
Automatic Mineral Water Bottling Plant Cost

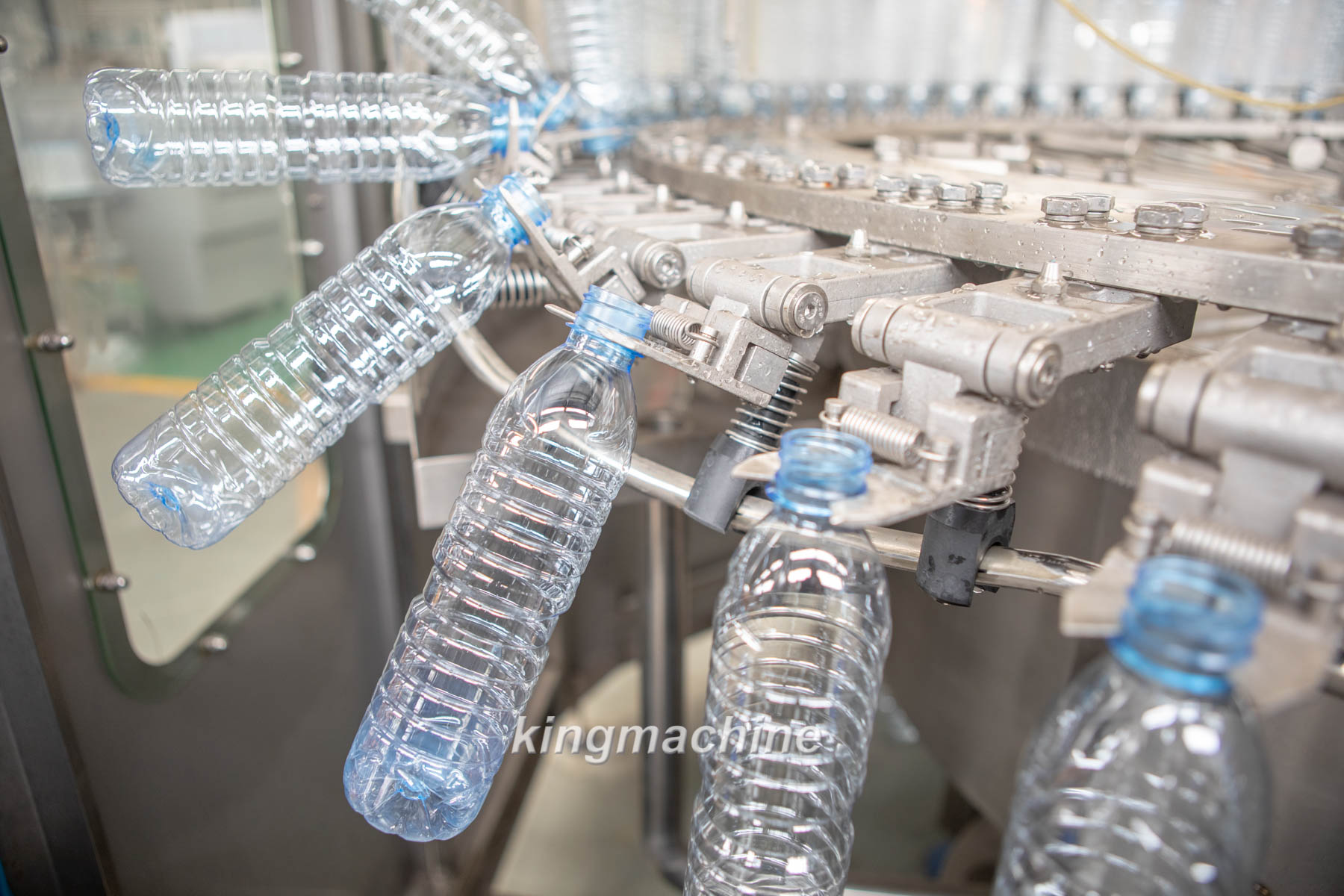

Washing heads
*All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
*304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
*304/316 stainless steel washing pump

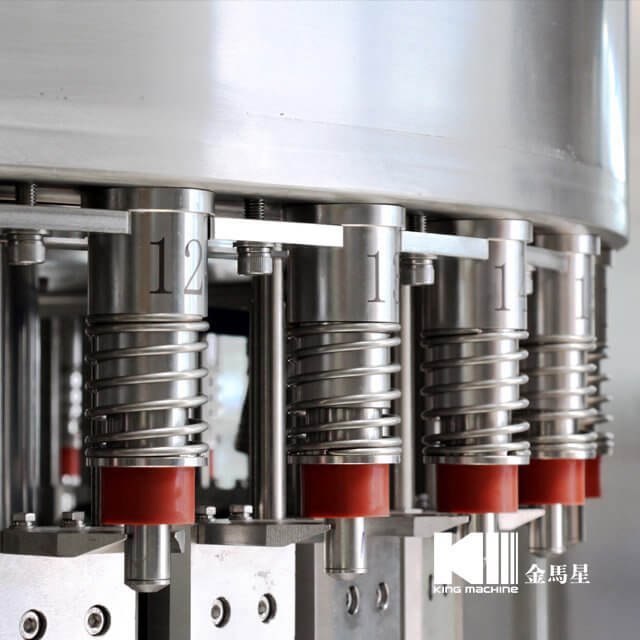

Filling heads
*304/316 Stainless steel high precision filling nozzle
*Filling volume adjustable in fine rank, same liquid level after filling
*All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
*304/316 stainless steel filling pump

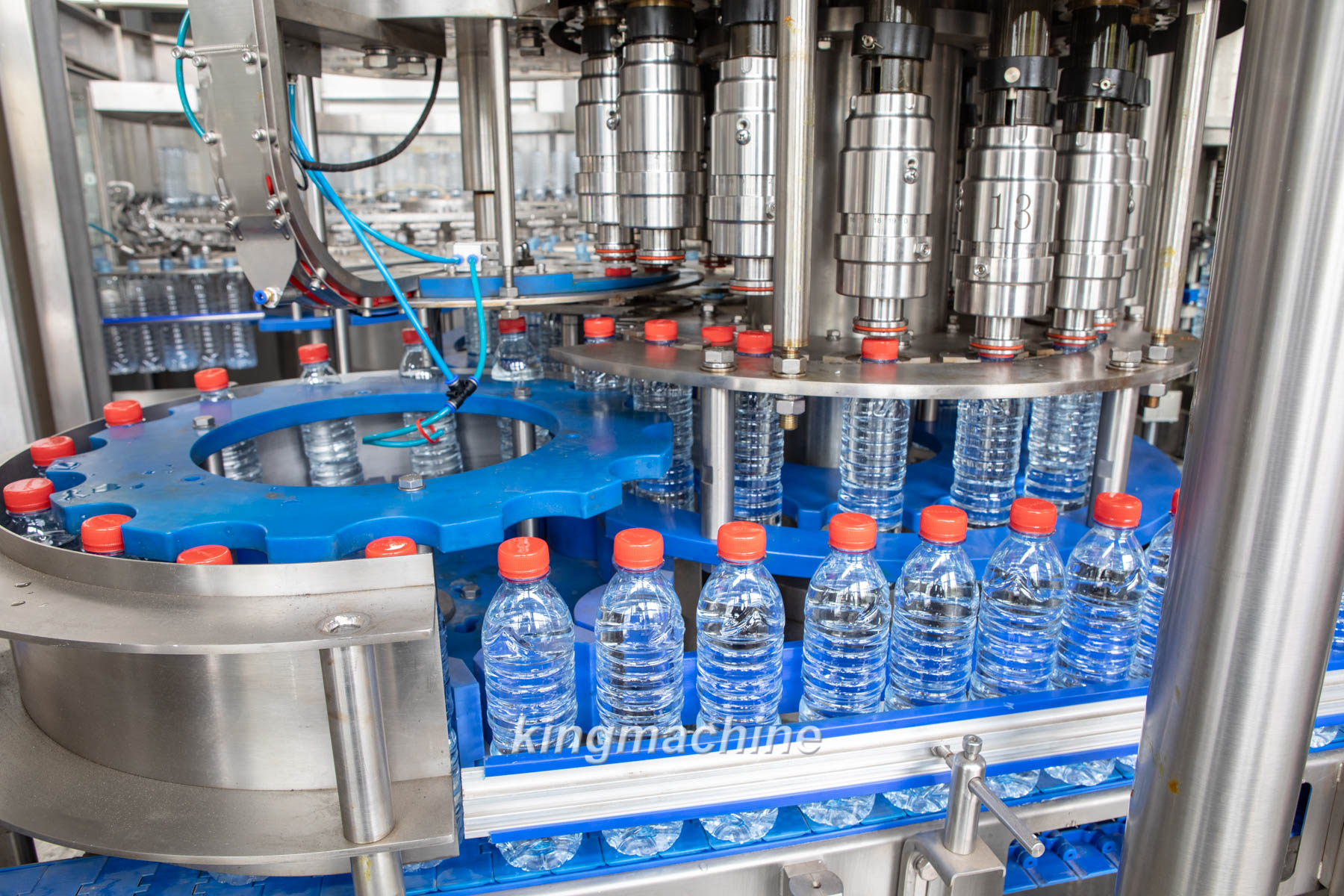

Capping heads
*Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
*All 304/316 stainless steel construction
*No bottle no capping
* Automatic stop when lack of bottle.

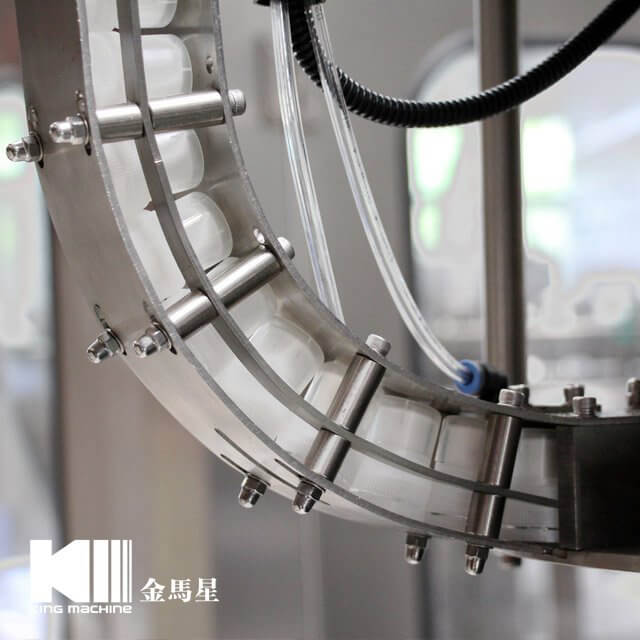

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

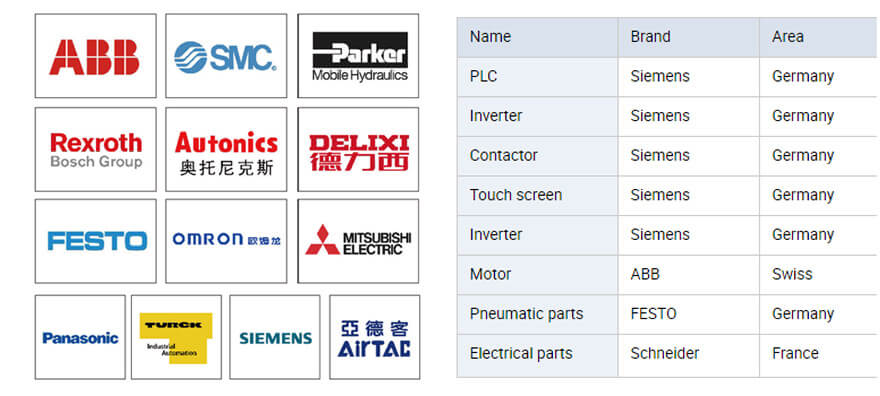

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan’s Mitsubishi, France Schneider, OMRON.
Packaging
FAQ
A:We will send one year enough easy broken spare parts together with the machines, shipping together.During the warranty time, we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid? A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
