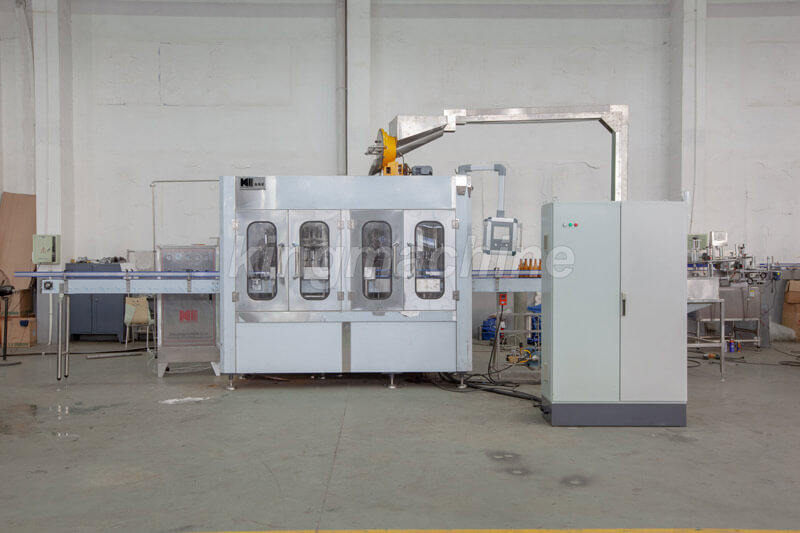

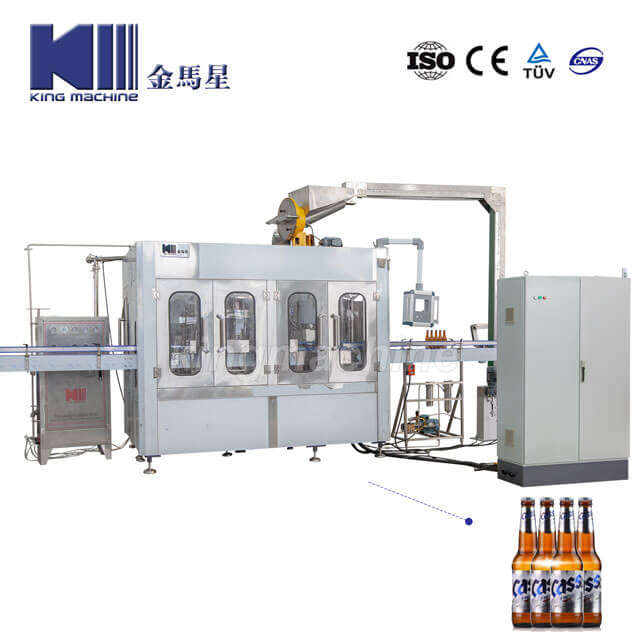

10,000bph Automatic Glass Bottle Beer Drink Bottling Washing Filling Sealing Capping Machine
- Product Category
- Water filling machine
- Juice drink filling machine
- Soft drink filling machine
- Easy open can filling machine
- 3&5 gallon filling machine
- Oil filling machine
- Wine filling Machine
- Beer filling machine
- Blowing filling capping combiblock machine
- Water treatment system
- Bottle blowing machine
- Bottle labeling machine
- Bottle packing machine
Product Description
Characteristics of Used Beer Brewing Equipment Plant :
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan’s Mitsubishi, France Schneider, OMRON
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan’s Mitsubishi, France Schneider, OMRON

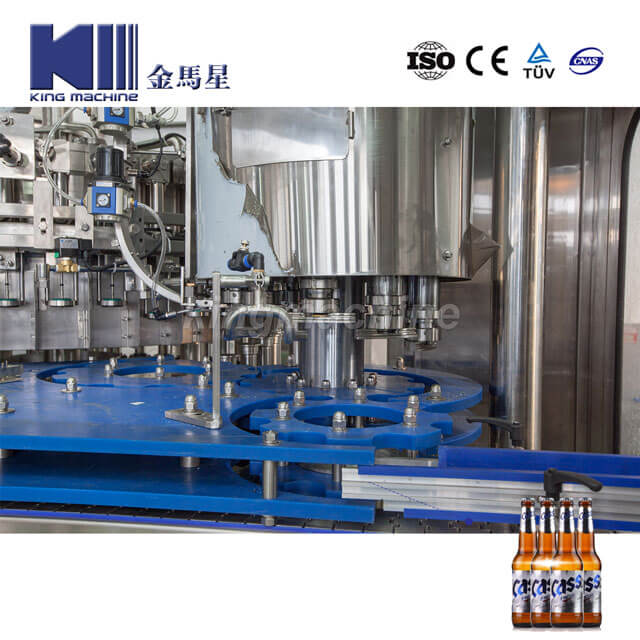

Filling heads.
<1> 304/316 Stainless steel high precision filling nozzle.
<2> Filling volume adjustable in fine rank, same liquid level after filling.
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
<4> 304/316 stainless steel filling pump.
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

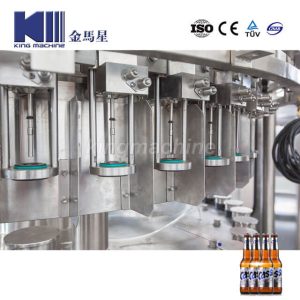

Capping heads.
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2% .
| Model | BGF16-12-6 | BGF18-18-6 | BGF24-24-8 | BGF32-32-8 | BGF40-40-40 |
| Heads of washing，filling，sealing | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 |
| Production capacity（bottle/hour) | 1500-2500 | 2500-4500 | 4500-6000 | 6000-8000 | 8000-9000 |
| Suitable bottle height(mm) | H=170-320,D=50-100(330-1500ml) | ||||
| Total Power(kw) | 1.5+0.37 | 2.2+0.37 | 3+0.45+0.25 | 5.5 | 7.5 |
| Overall dimension(L*W*H)(mm) | 2300*1680*2650 | 2500*1760*2650 | 3100*2100*2650 | 3800*2800*2650 | 4000*3300*3400 |
| Weight | 2600 kg | 3500 kg | 4650 kg | 6800 kg | 8500 kg |
